Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 161

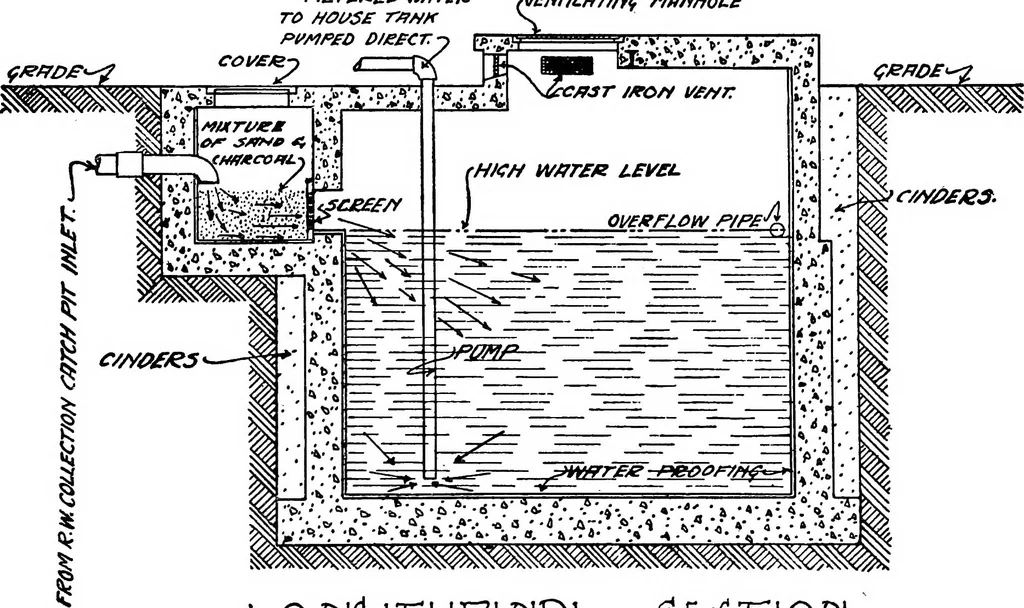

-rco/icejrrs \ffec// ^y/ve. • IIII .ji«i !^^gg^»!i;^?:^fgi^t^i5i£^:^^»^ FLD/^ FILTe/SEP W/fTSje coi/£je \/EHnLRrwf Ma/^Hoi.e … LO/^CiirUFl/^QL ^ErCriOA ^ PLATE 147—CEMENT CISTERN FOR DRINKING WATER Plan and cross section showing details ofconstruction of a concrete cistern with filteringcompartment, for the storage of rain water fordrinking purposes. For work of this kind, thesand and gravel used for the concrete should…
Building
