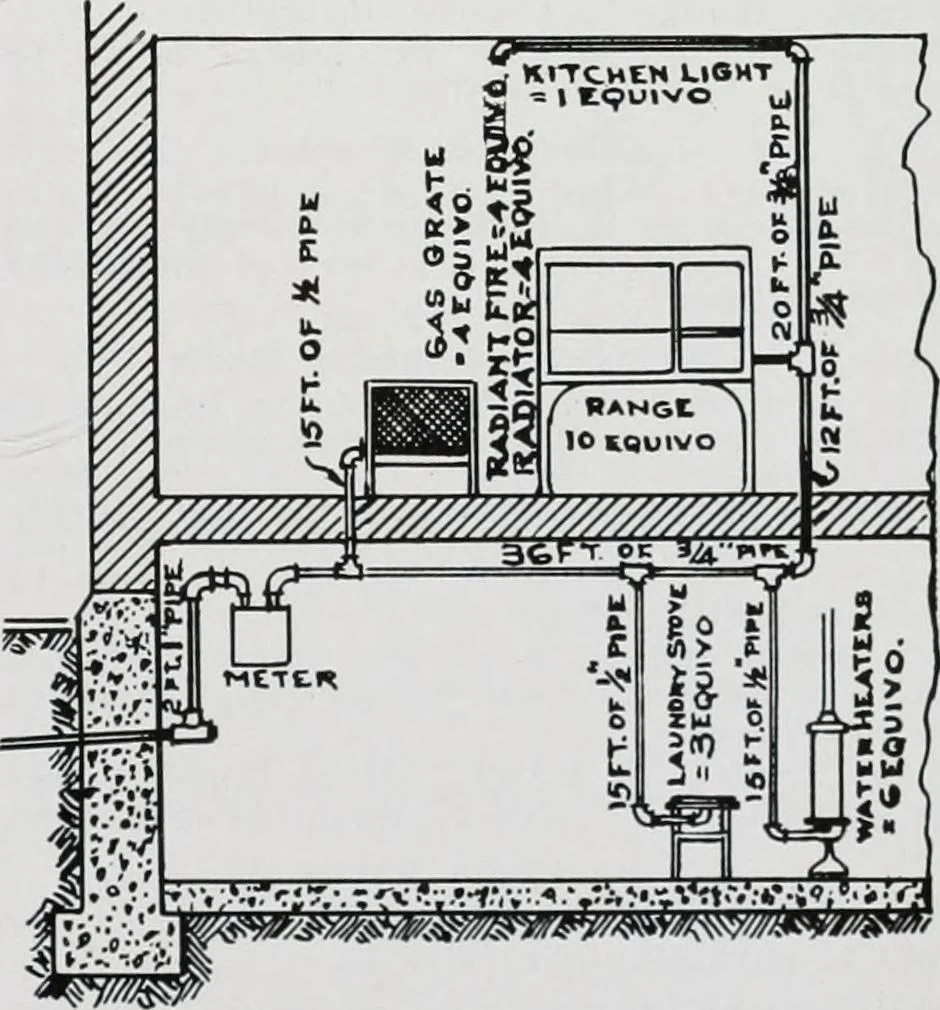

1 60 33 11/4 80 60 11/2 120 76 When installing piping for Hotel and Res-taurant appliances, the rule of pipe sizes andconsumption table of appliances will be ob-served where piping not larger than 114inches is required. Where large appliancesare to be installed requiring piping of alarger size than… … 50 Sketch showing piping plan tor apartment or resi-dence when heating appliances, range, water heater,laundry stove and kitchen light are to be used; alsoshowing ten feet of one inch pipe to first opening. 3H7
