Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 86

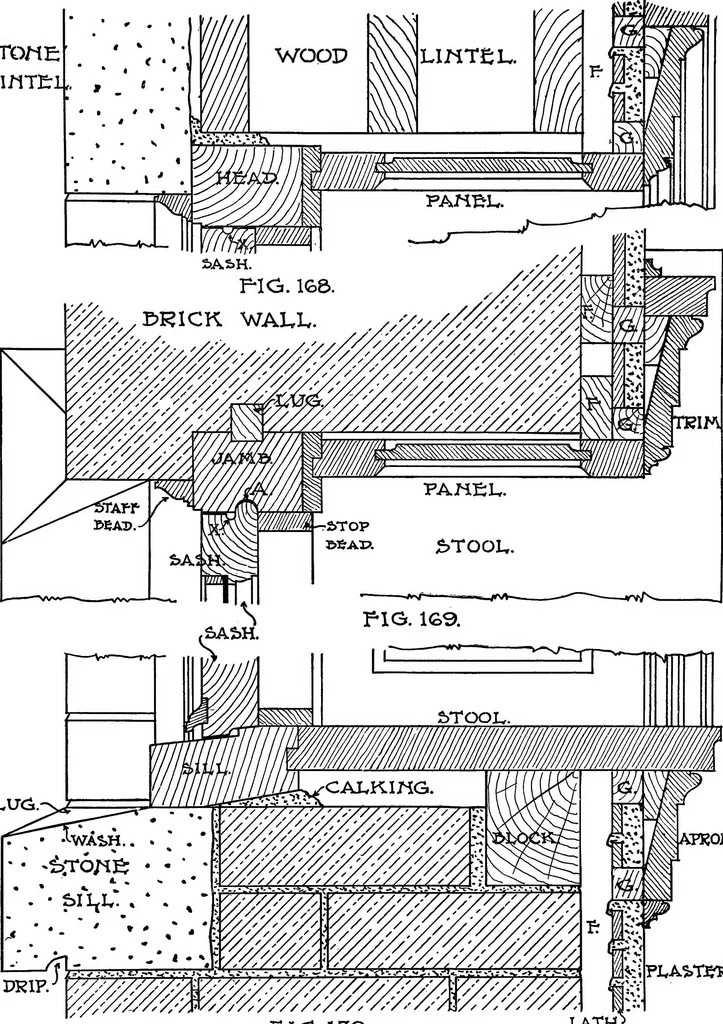

AFRON. lBBX> F-IG. 167 PLATE 73—OUTWARD OPENING CASEMENT—IMPROVED CONSTRUCTION Arrangement for 16 inch brick wall. Fig. 165, cessed space and with joint covered with staff section through window head. Fig. 166, section bead. Fig. 167, section through sill. X indicates through jamb. Note how… … LUC3. DRIP. aT30H, n^A%rsfi?. PiCi.lTO. JJ^TH) PLATE 74—OUTWARD OPENING CASEMENT IN BRICK WALL Improved construction, arrangement for 16 inch to provide air space to keep out dampness. The brick wall. Fig. 168, section through window interior trim is nailed to the grounds (G) and the head. Fig.…
