Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 88

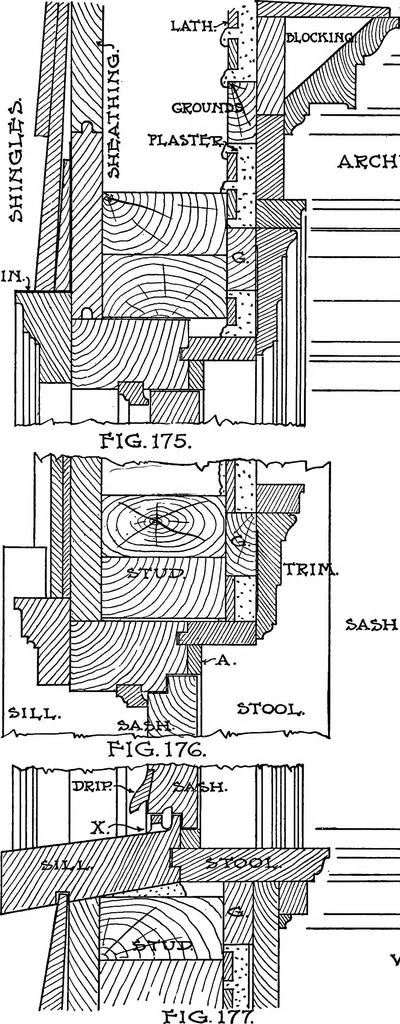

this difficulty is muchgreater than with those opening outward. Theconstruction here illustrated will be found per-fectly weather-tight except in exposed locations. Fig. 171, section through window head. Pig. 172,section through jamb. Notice construction of walland application of outside trim to… … r y Al?CHlTl?AV:e. *n;;ilA. Z t-Kh V/AintsCOT. r-lcS. 17S. PLATE 76—WEATHER-PROOF INWARD OPENING CASEMENT Fig. 175, section through window head. Fig. 176,section through jamb. Fig. 177, section throughwindow sill. Note extra drip mould attached tolower part of sash to protect the lower joint.…
