Collected papers on acoustics (1922)

Sabine, Wallace Clement · Cambridge, Harvard University Press; [etc., etc.] · leaf 33

An illustration from Collected papers on acoustics, 1922, leaf 33

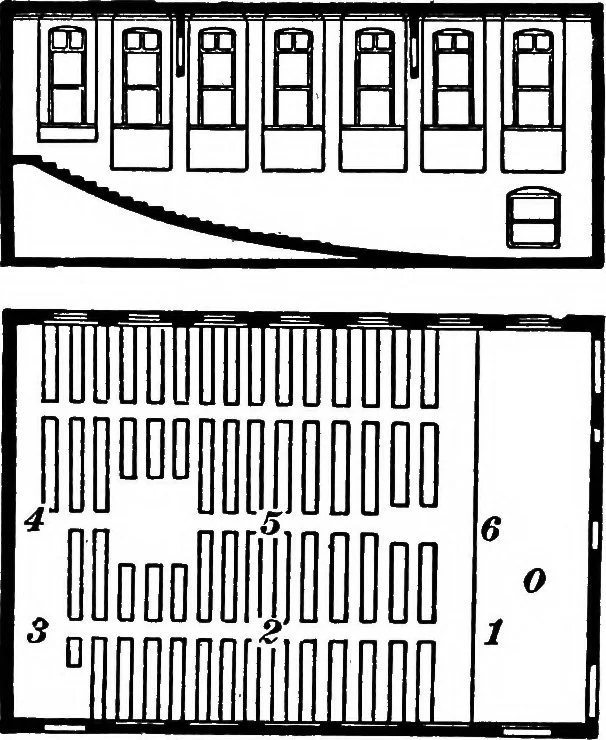

vestigation. Numerous later experiments, more accurate, but notespecially directed to this point, have verified the above generalstatement quite conclusively. The duration of audibility is nearly independent of the position ofthe source. — The observer remaining at the point marked 0 in the diagram… … Station 1 . . 2 . . 3 .. 4 . . 5 .. 6 .. Duration ,. 3.90 . 4.00 . 3.90 . 3.98 . 3.95 . 3.96 Fig. 3. Lecture-room, Jefferson PhysicalLaboratory: position of observer at 0;positions of air reservoir and organ pipe1-6. The efficiency of an absorbent inreducing the duration of the residualsound is,…

Architectural acoustics
