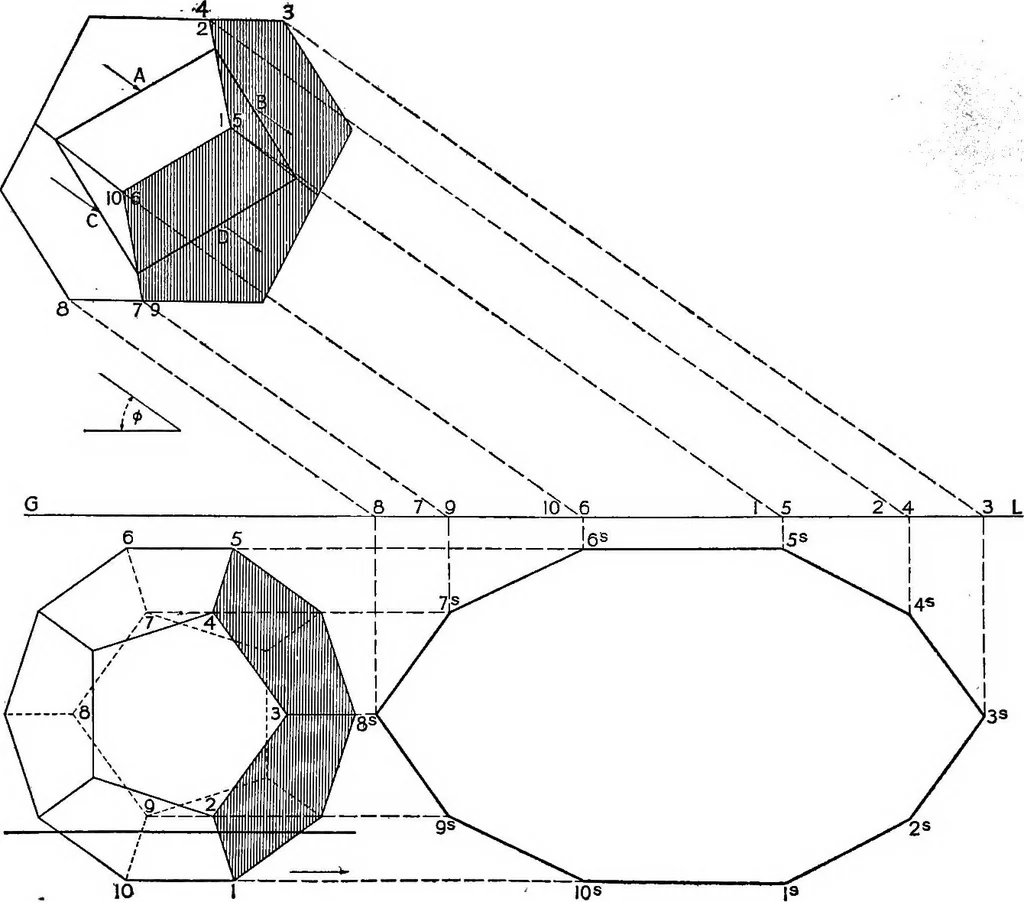

ine of Shadow is a Polygon, whichis the shadow of those edges of the polyhedronwhich are Lines of Light and Shade, as in thesefig-ures. The Angles of the Polygon are theshadows of the solid angles in which the edgesmeet. In Fig. J 1, the shadow is cast upon thehorizontal plane; in Fig. J 2, upon… … Fig. Jl
