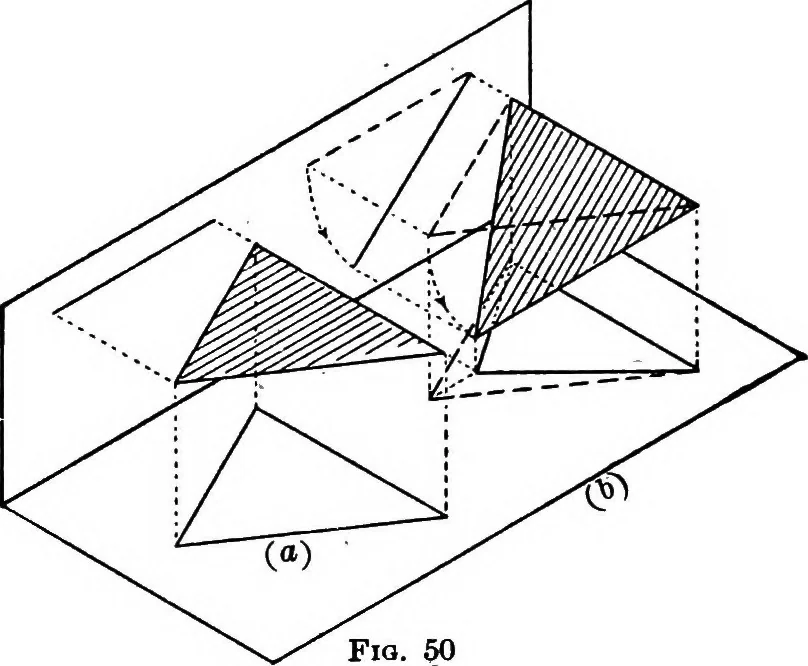

slowly tilted toward the plane of pro-jection (Fig. 50 6), the projecting prism will contract in thick-ness. The figure in space is now an oblique section of theprojecting prism, while its projection, which remains a rightsection, is smaller than the figure itself by an amount that de-pends- upon… … 54 DESCRIPTIVE GEOMETRY [V, §46 46. Special Case.> An adaptation of the principles of § 27enables us to construct the projections of any plane figure, oneside of which is parallel to a plane of projection. I. Let it be required to draw the projections of a regularpentagon one side of whiCh is…
