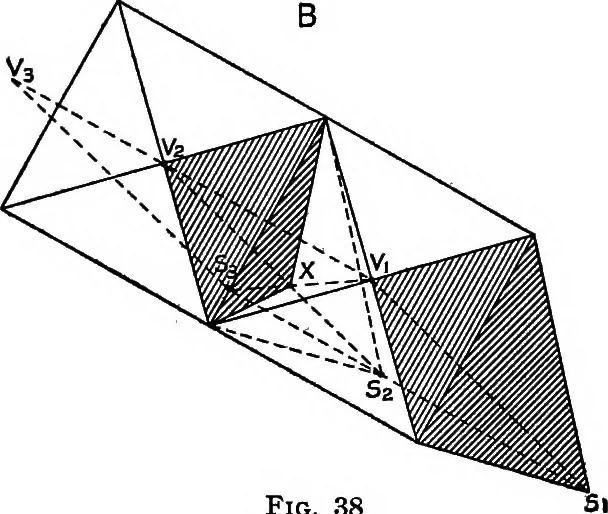

n the groimd where the shadows of the two pyramids meet. At B, where the two shadows cast uponthe ground do not intersect, a line v^ V2 is drawn connecting the vertices of the pyramids and casting itsshadow on the ground at s^, 5^. If this line is produced to s^ at the base of the right-hand… … Fig. 38 40 SHADES AND SHADOWS APPLICATIONS TO ARCHITECTURAL DETAILS CHAPTER I. POINTS There are of course no architectural details which consist only of points. CHAPTER,II. RIGHT LINES Example I A and B. A Post and Wall, with Cap and Base. A, Perspective; B, Plan and Elevation. This example…
