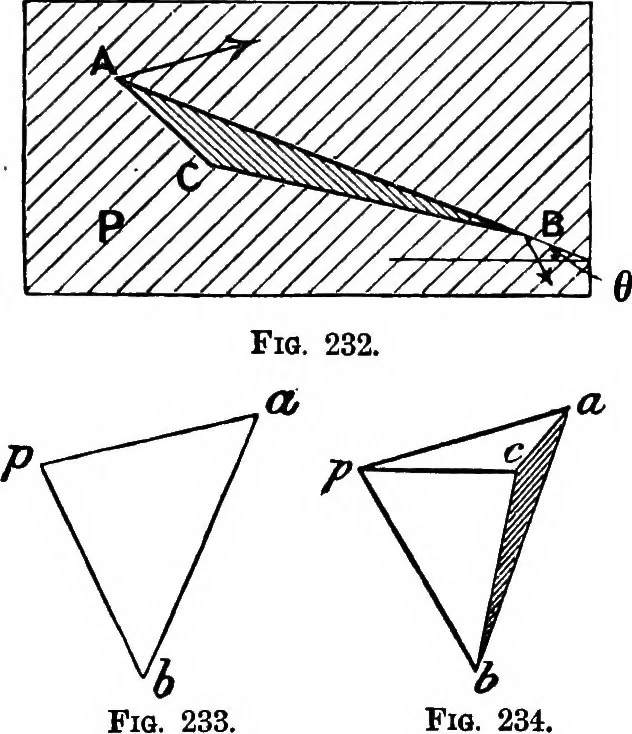

de and direction over the base plate.Since the sides of the triangle aho are respectively perpendicularto the sides of the triangle ABO, these two triangles are similar, (db) (ae) (ch) ,, , ,. and consequently the ratios W, ^, ^ are all equal. In fact, each of these ratios represents the same… … 2i8 MECHANISM. represented by ^a, and the velocity of 0 about A representedby ac. If the point 0 lie in the line AB, so likewise will the point clie in the line a&, and c will divide ah in the same proportion thatC divides AB. Let us proceed to apply thife method to a few actual mechanisms. §…
