Shades and shadows, with applications to architectural details, and exercises in drawing them with the brush and pen .. (1912)
Ware, William R. (William Robert), 1832-1915 · Scranton, International Textbook Company · leaf 67

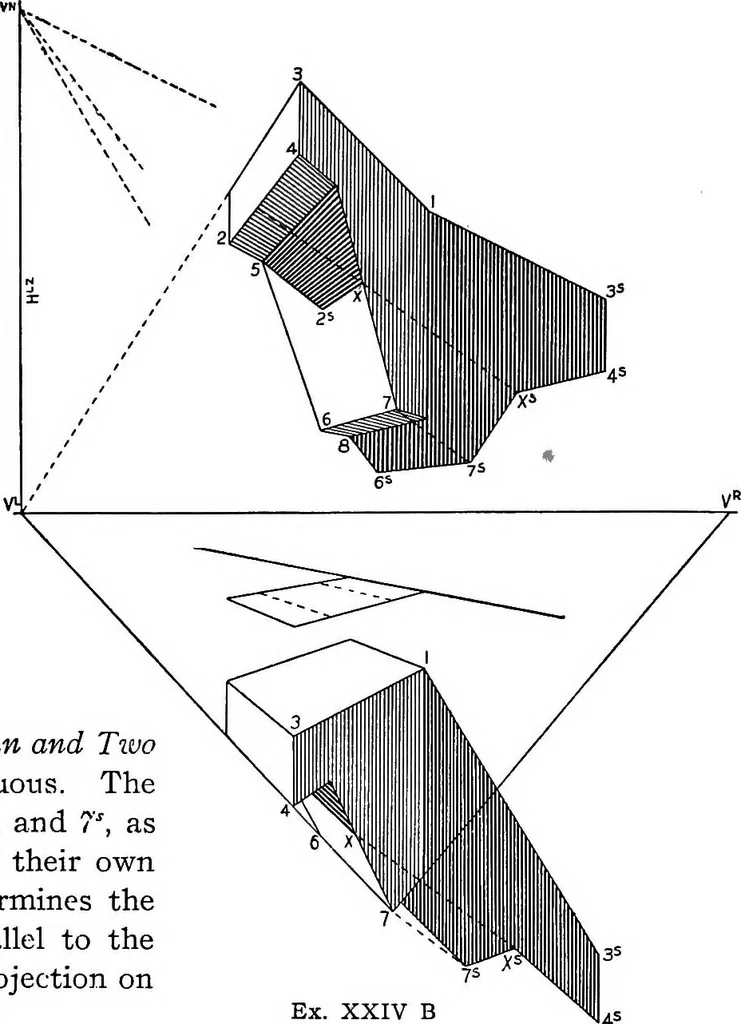

e 6 5 17 1 3.4 Ex. XXIV A … Ex. XXIV B Example XXIV A. A Bracket With an Inclined Face; Plan and TivoElevations, With Shadow on the Wall.—^The plan is superfluous. Theshadows of the points 2, 3, 4, 6, and 7 fall at 2\ S\ Jf, 6% and 7% asdetermined by means of the side elevation. 1, 5, and 8 are their ownshadows, a; is a Point…
