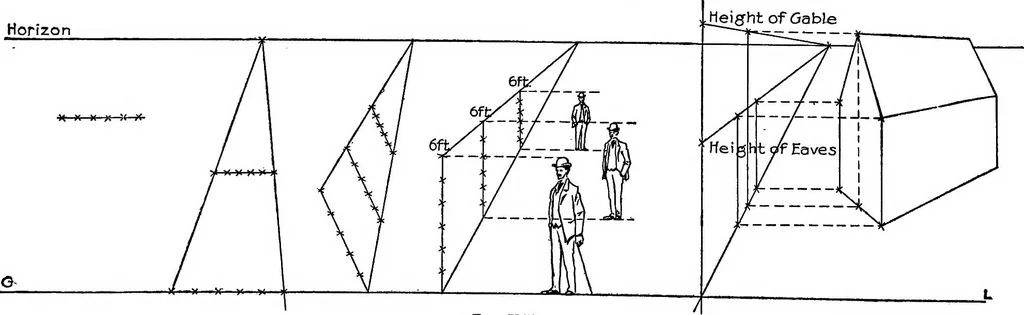

sides horizontal, or parallel to the Horizon,and the other two directed toward- the Center V^. One diagonal is directed toward V^ and the other toward V^. III. A horizontal square drawn in 45-degree Perspective has two sides directed toward V, two toward V^,one diagonal toward V, and one… … Fig. UU 30. Scale.—Lines lying in the Plane of the Picture are, so to speak, their own perspectives, and anyrequired dimensions can be laid off upon them by a convenient scale of equal parts. When, as in the Right-handPlan at Fig. R R, the diagonal of a square, lying in the Ground Plane, comes upon…
