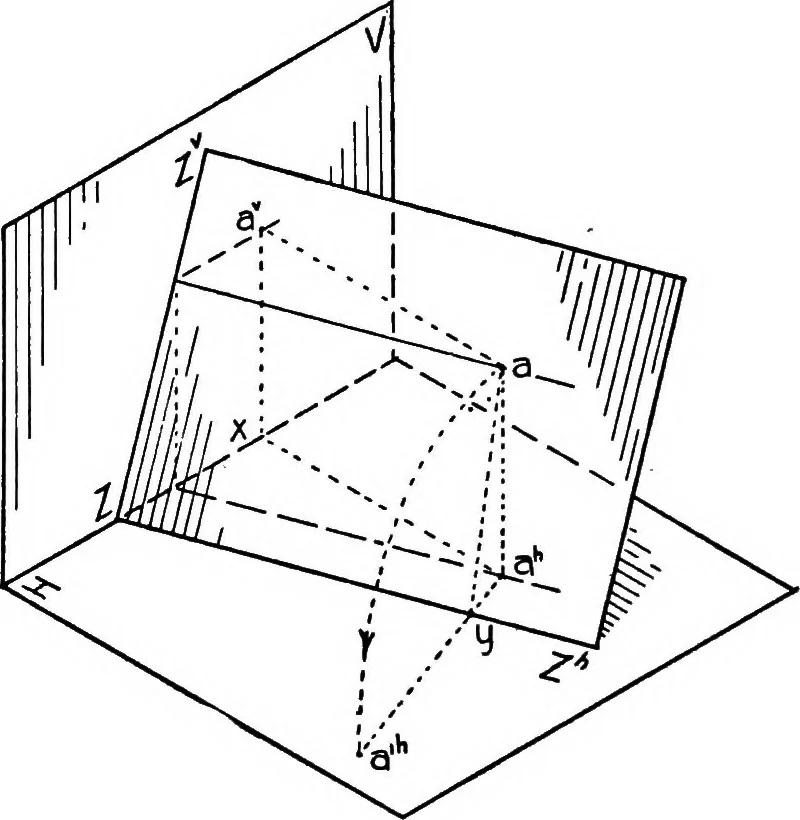

are known and whose plane is given. 98 DESCRIPTIVE GEOMETRY [VI. § 91 When it was required to find the true length and slope of aline (§ 24) the method consisted in reducing the line to a specialcase. Here also the most natural method will be to bring thegiven figure parallel to, or into… … Fig. 99 on this plane as representing a plane figure, which it is requiredto rotate into a position parallel to, or into coincidence with,H. The purpose of the operation is to determine the trueshape of the imagined figure; hence the relative positions ofthe points must not be changed during the…
