Young, George, jr, Baxter, Hubert Eugene, joint author · New York, Macmillan · leaf 241

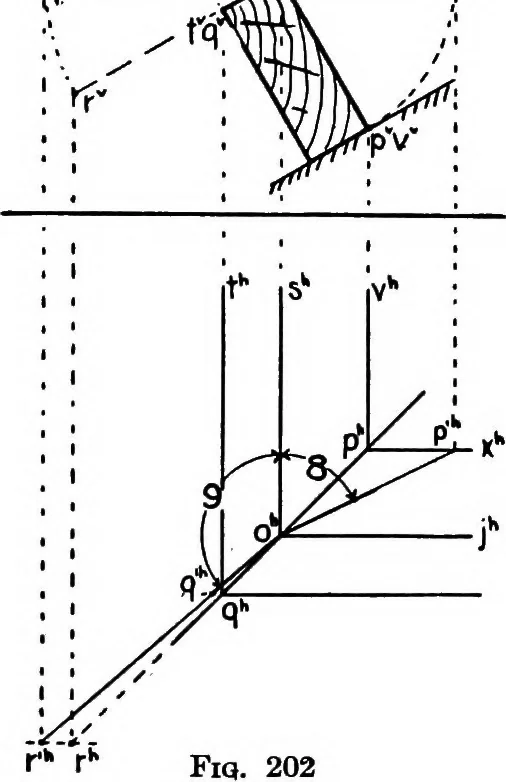

bevel of the hip rafter. Assume an H plane ofreference, as shown by IIA. Extend the roof planes to intersectthis plane. The traces will be yP, ZZ*, and ZZ, as shown.The line of intersection of the planes is an. Now proceed tofind the angle between the planes, as in § 101. 7. The side cut of the hip…
Geometry, Descriptive
