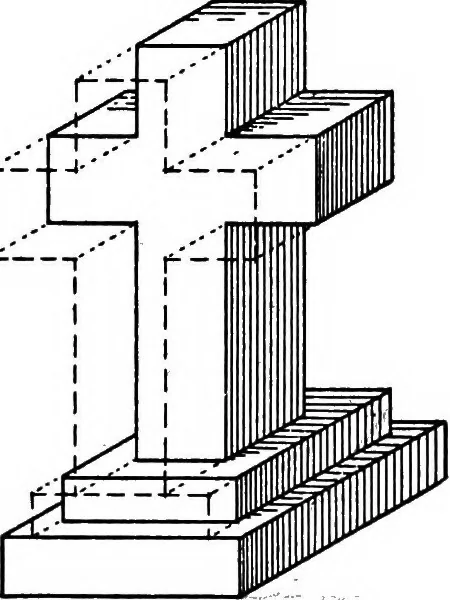

jection and its length maybe made to have any desired values whatever by properlyselecting the inclination of the projecting lines. In practice it is usually convenient to draw an oblique pro-jection without considering particularly the exact position ofthe projecting lines. A front elevation of… … FiQ. 253 274 DESCRIPTIVE GEOMETRY [XIII, 1225 used in the figure. In laying oS distances on these Unes, anyproportion to the true dimensions may be used, depending onhow fully it is desired to show the side faces. In the figure,a one to one ratio was used. The inclination and length ratio to be…
