Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 140

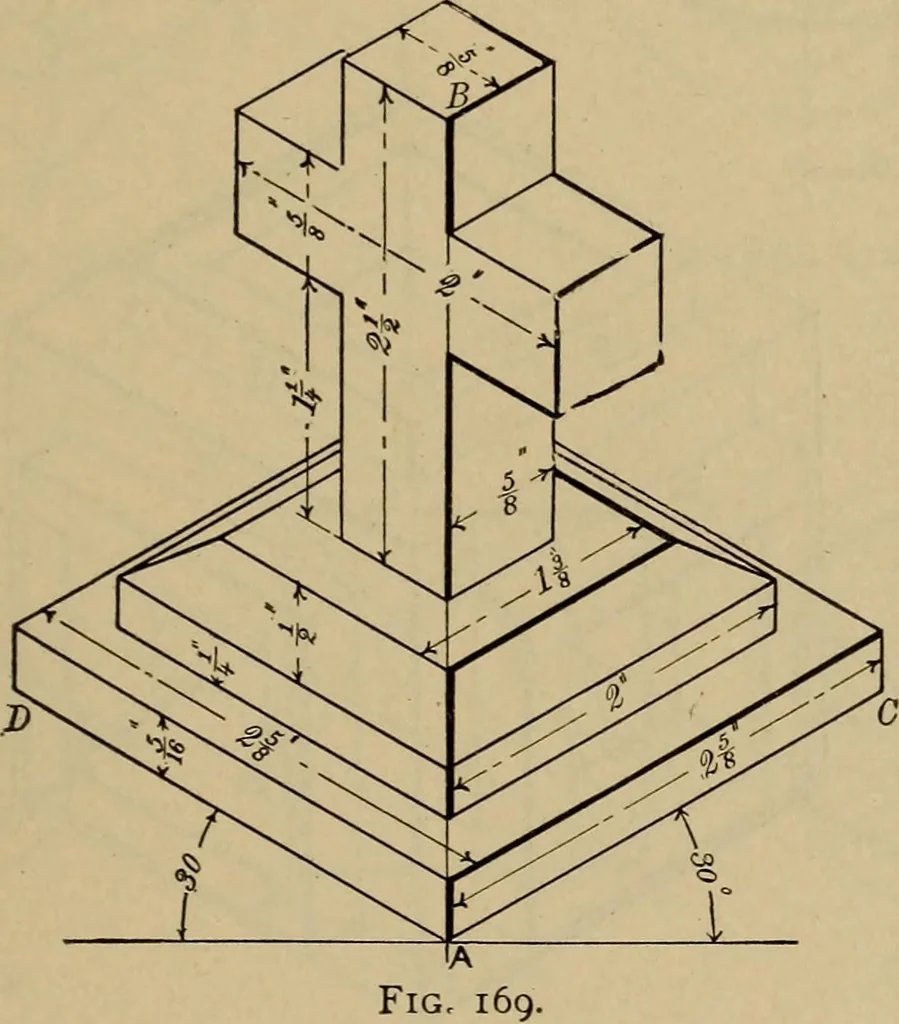

the shade lines will beapplied as in ordinary projection. PROB. 38.—To make the isometrical drawing of a two-armed cross standing on a square pedestal. OR THOGRAPHIC PROJECTION. 25 Begin by drawing a center line AB, Fig. 169, and from thepoint A draw AC and AD, making an angle of 300 with… … Prob. 39.—To make the isometrical drawing of a hollowcube, with square block on each face and a square holethrough each block, to dimensions given on Fig. 170. As before, first draw a center line, and make an isometricaldrawing of a 2\ cube, and upon each face of it build theblocks with the square…
