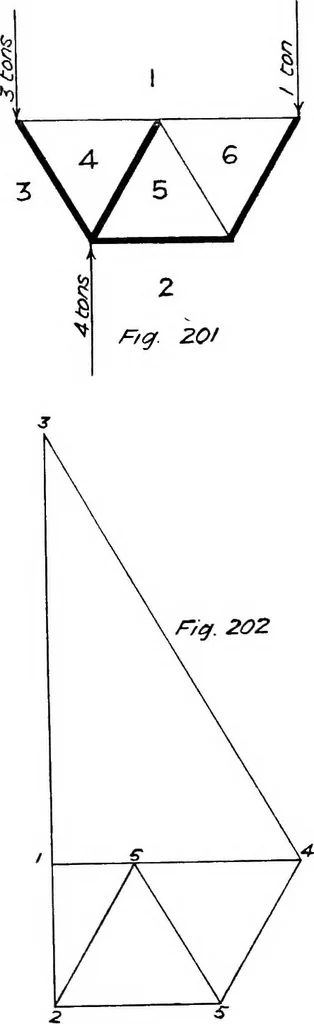

span, the maximum bending , ... , WL 50 X 15-5 n„ ^ ,^ 97 X 12moment will be -g- = g = 97 owt.-ft. = —-— = 58 ton-ins., as in EXAMPLES FOR PRACTICE 59 Pig. 198. Then taking 0 = 7 tons, Z = ^^ = say 8-3, which will be covered by thejoist found above. It will be seen that as the maximum stress in… … Q. 43. Draw a frame and stress diagram for the bracket shown in Fig. 198. For answer, see Figs. 199 and 200. Q. 44. A braced cantilever consists of three equilateral triangles making twobays on top and one on bottom. It carries an end load of 1 ton. Draw the stressdiagram to a scale of 1 in. to 1…
