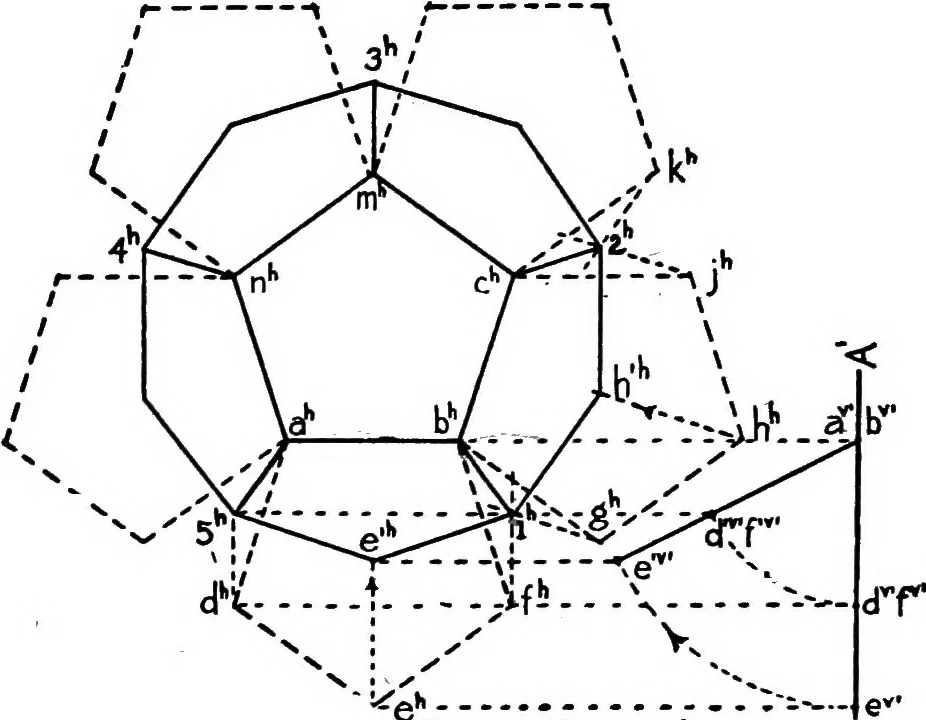

figtire remain 60 DESCRIPTIVE GEOMETRY [V, § 51 on H, as above, while the figures surrounding it are rotated up-ward, swinging on the side which touches the base as an axis.Each of the vertices will move in a circular arc which is pro-jected on plan in a straight line perpendicular to its axis… … i -- .-—- e Fig. 59 (Repeated) j^ corresponding parts have equal elevations. Therefore thepoints 2*, 1*, etc., are real points of intersection for these arcs.Before the rotation was started, the lines hf and hg had the pointh in common. If the points / and g have been brought togetherat \, these…
