Simplified mechanical perspective for the use of ... schools (1909)
Frederick, Frank Forrest, 1866-1942 · Peoria, Ill., The Manual arts press · leaf 55

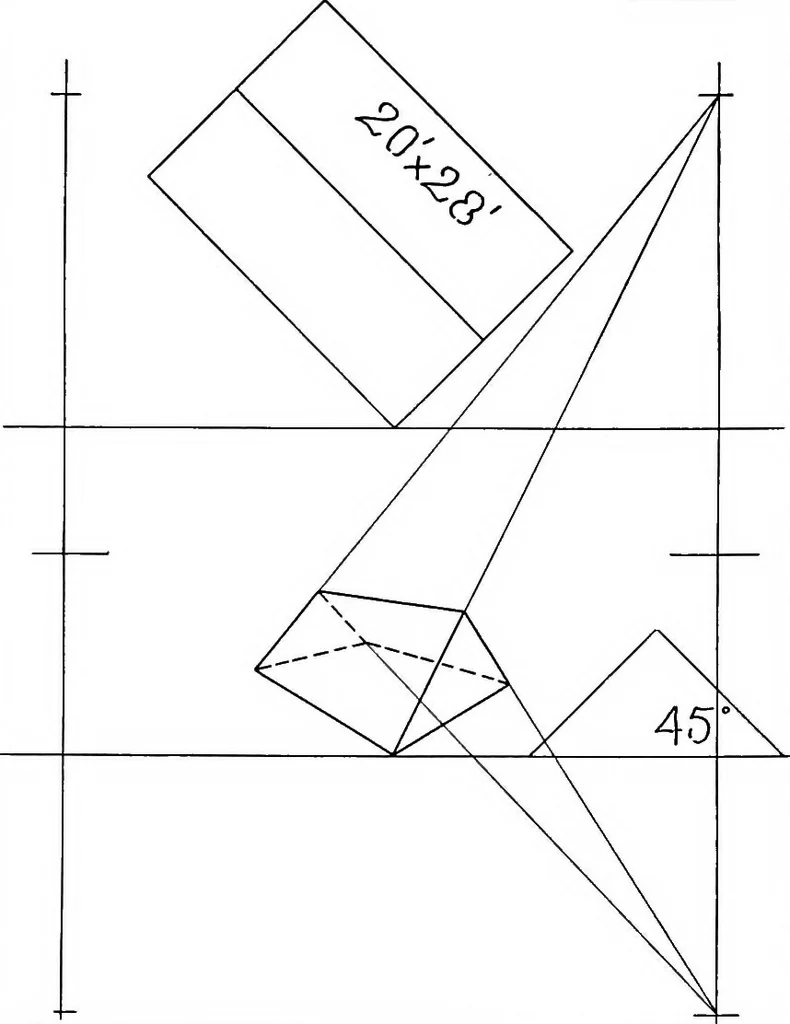

i=l0. S. P. 320 to right and 22 0 above. C. V.26 0 from S. P., P. L. at S. P., H. 16 0 above P. L. ■ A triangular prism, size and location shown by plan and elevation,is drawn using upper and lower vanishing points. 7POTT, … Problem XXXIII. Scale ji=V0. S. P. 16 0 to right and 11 0 above. C. V.13 0 from S. P., P. L. at S. P., H. 8 0 above P. L. A cube, faces 8 0 x 8 0, rests on one edge as shown by the planand elevation. All lines used to obtain the perspective are lined-in toshow how few are necessary to work the…
Perspective
