Reynolds, Osborne, 1842-1912, Brightmore, Arthur William, 1864-, Moorby, William Henry, 1872- · Cambridge [Eng.] The University Press · leaf 161

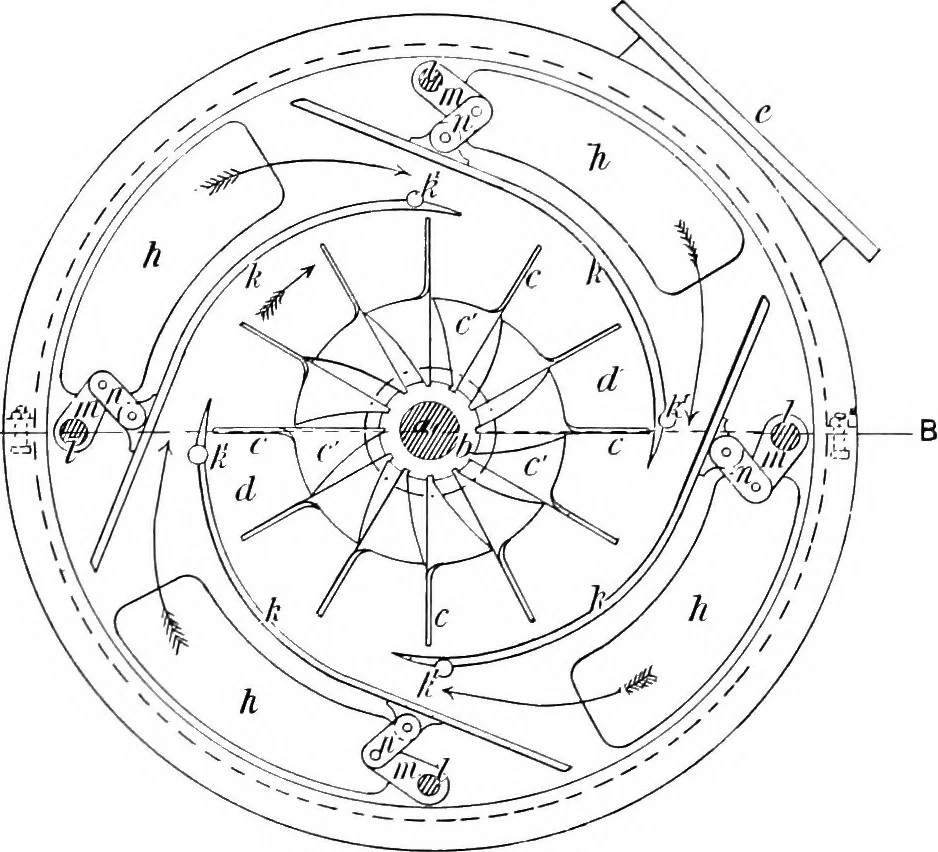

rranged in straight lines, but really theyhave to be placed in circles, round an axis, either side by side as in what isknown as the parallel flow turbine, or one set within the other as in radialflow turbines. .4 is a set of fixed and B a set of moving passages; the fluidenters through A in tlie… … Fig. 2. 20] IMPROVEMENTS IN TURBINES AND CENTRIFUGAL PUMPS. 145 sets moving to the left. For centrifugal pumps and fans, the direction of the fluidand of the moving passages is reversed, the fluid entering the moving set Bwill be discharged into the fixed set A, and then pass to the moving set Bto…
