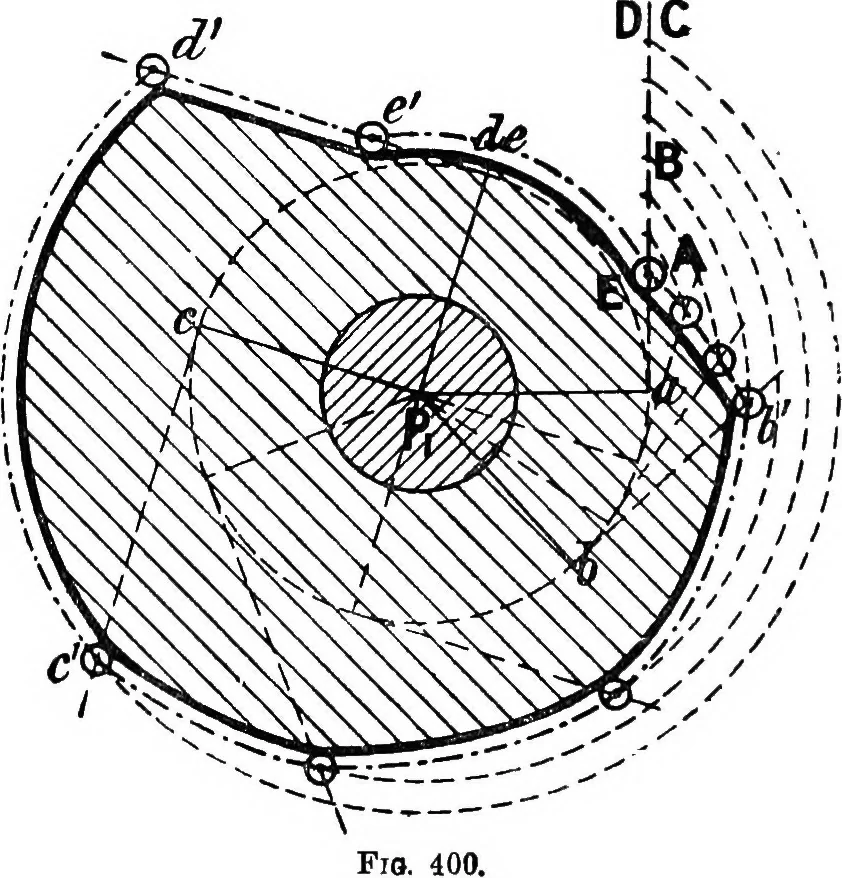

wn in Tig. 400, and needs but little 362 MECHANISM. explanation. The vertical line through A is the line of stroke,and A is the lowest position of the centre of the roller. Theposition of the cam-shaft centre Pi is known, because the per-pendicular distance Pioi is equal to 1^, and the distance… … 150°, and 90°, and the distances AB, BC each equal to |. As thecam turns through the angle aPi&, the slider rises from A to B;as it turns through JPiC, the slider rises from B to C; as it turnsthrough e2xd, the slider remains at rest; it then suddenly diopsto its initial position, in which it…
