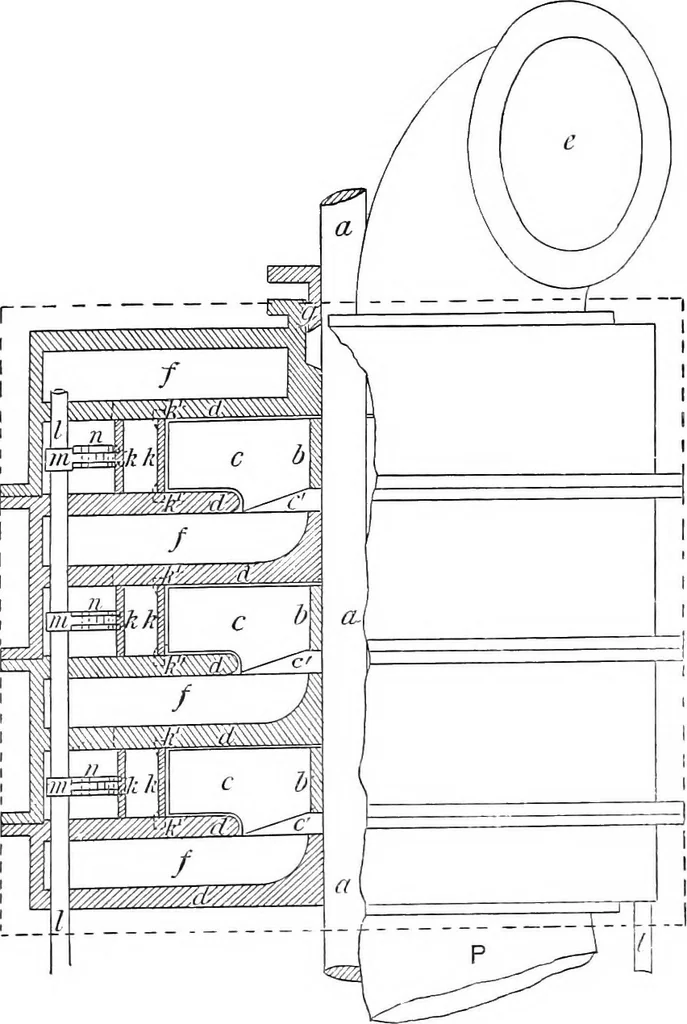

each vane near the axis is of the form shownand is turned round until it is at an angle of 70° or thereabouts with the faceof the vane and axis of the shaft a. The vanes c revolve between the endcasings d, there being a slight clearance between the edges of the vanes andthe surface of the end… … Fig. 3. O. K. 10 146 IMPROVEMENTS IN TURBINES AND CENTRIFUGAL PUMPS. [20 is under pressure. The fluid then passes through holes h in the end plate orcasing, and is directed by guides (fixed or adjustable) upon the vanes ccarried by the shaft a, and then leaves the vanes by passing from themthrough…
