Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 533

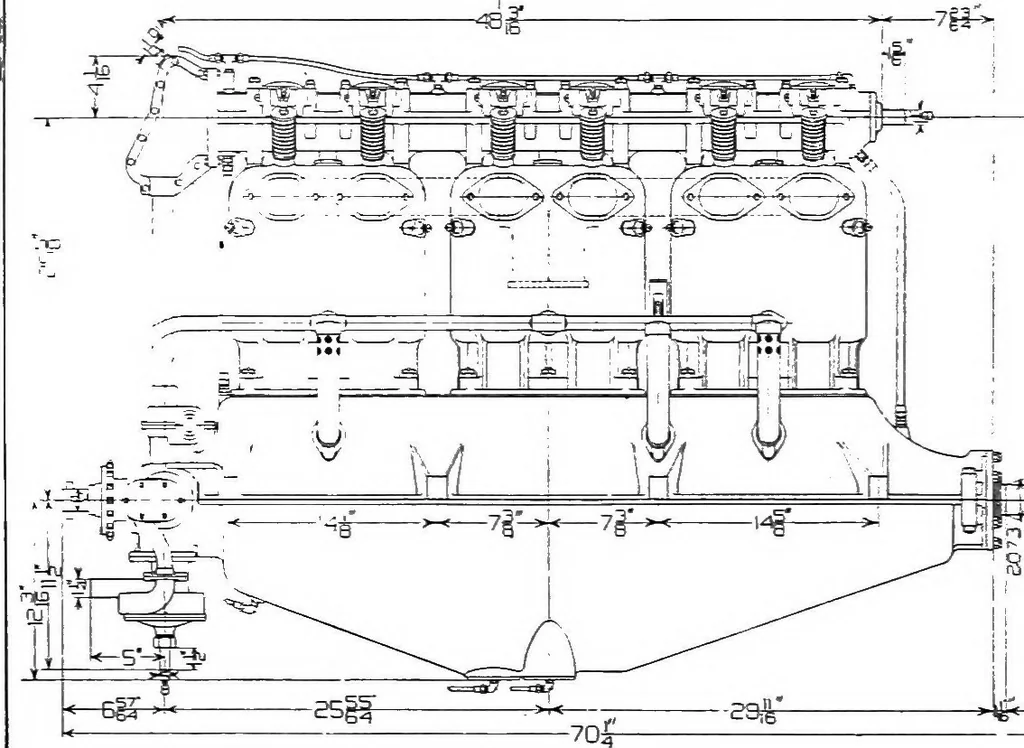

s and cylinders, as well as the valve ports, are 532 Aviation Engines entirely surrounded by water jackets. The valves setin the heads at an angle of 25= from the vertical, aremade of tungsten steel and are provided with doublesprings, the outer or main spring and the inner or aux-iliary spring,… … *—sfr^ Fig. 239.—Dimensioned Side Elevation of Wisconsin Six Motor. aluminum housing bolted to the top of the cylinders.This housing is split horizontally, the upper half carryingthe chrome vanadium steel rocker levers. The lower halfhas an oil return trough cast integral, into which theexcess oil…
