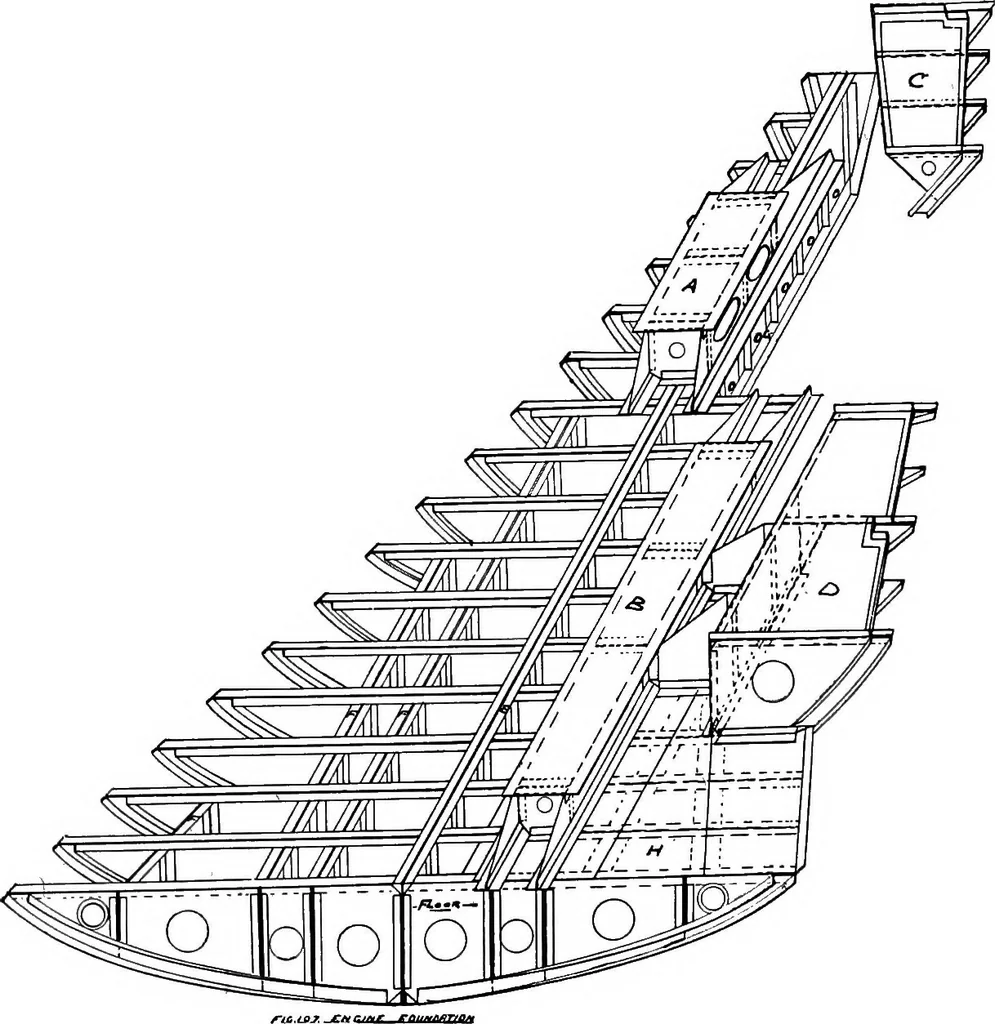

keelson which is laid out with strips similar tothe other parts of the center keelson, only the riveting is all the samewith a six-diaineter pitch on both sides through keelson plate, engineseat plate and keel. One batten will serve the purpose of marking allthe angles and a tee mold similar to… … STEEL SHIP CONSTRUCTION 101 Fig. 108, two plates are marked from same. For the lightening holesa line is scratched in on the mold as shown by AA and BB, Fig. 108,representing center of same. The vertical angles are marked from teemold similar to Fig. 9. G shows the bottom after end of the…
