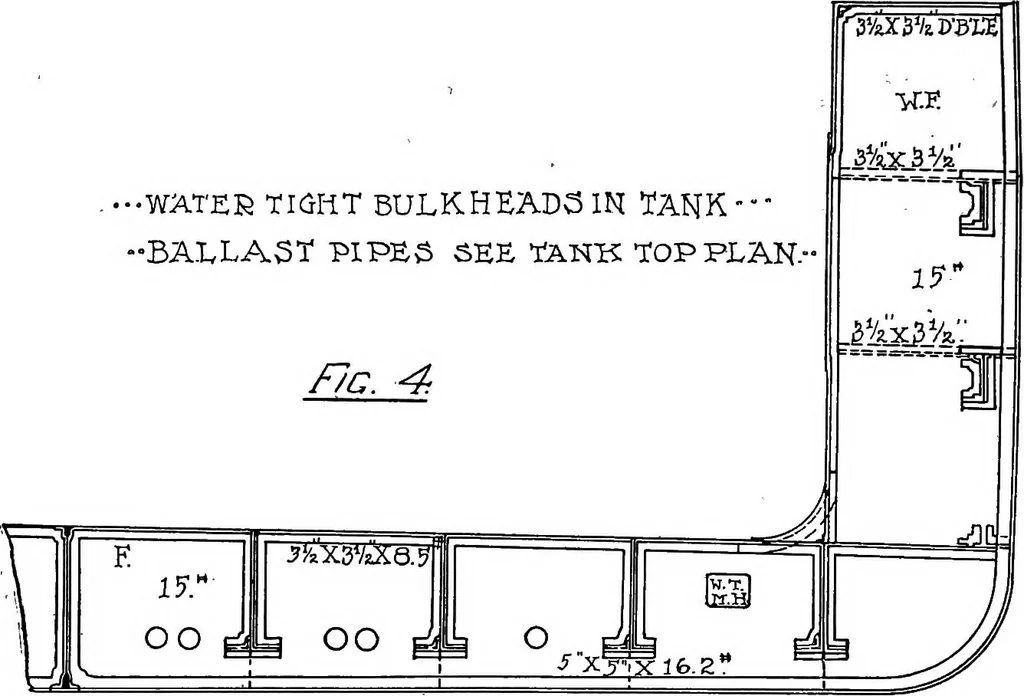

laps, channels, etc., would be marked fromtemplates drilled for that purpose, so that when the bulkhead has beenlaid out all the parts are punched and erected in place on the vessel.All smith work is done after the different parts are in place and riv-eted together. The bulkhead work including the… … On the lakes with the mold system the cost would be 25 per centless. FRAME BEVELING There is the same practice nearly everywhere in frame bendingand beveling. Some use machines, others do the work by manuallabor. In every case care is taken to have the flange next the platingsmooth. The lifting of…
