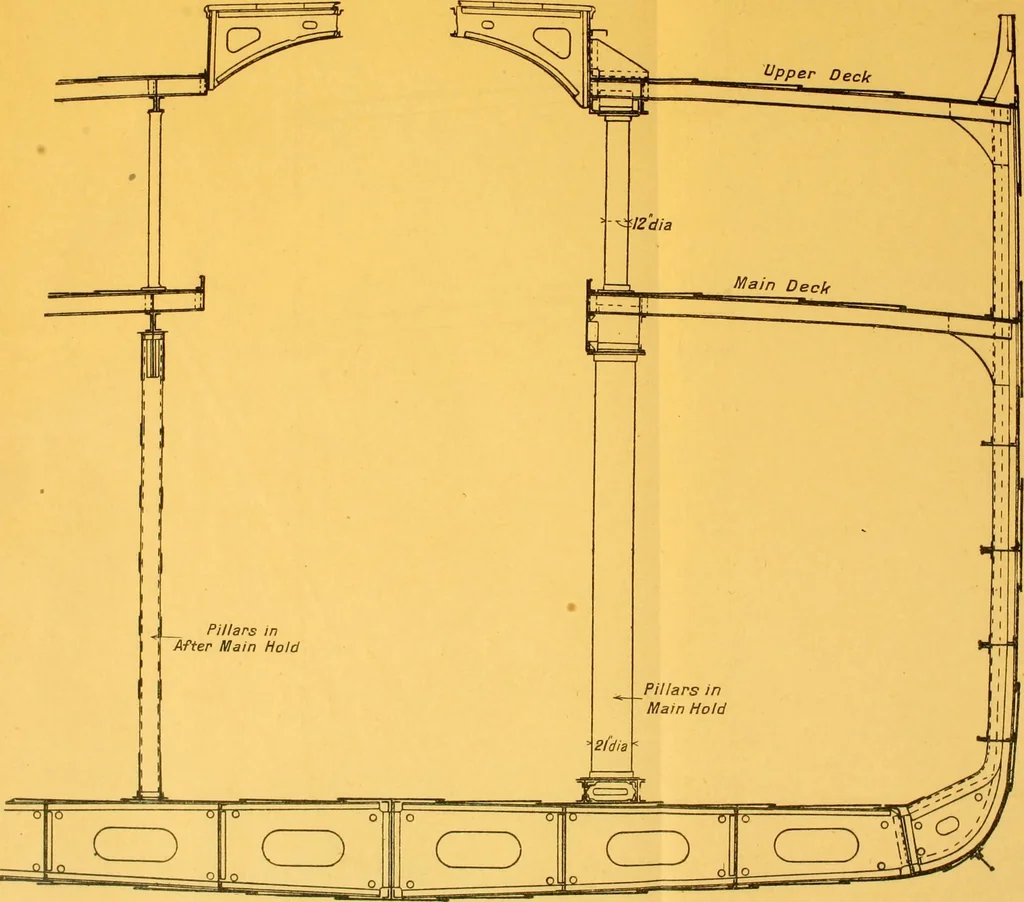

Fig. 72.ILLUSTRATING SOME NEW FEATURES IN MODERN SHIPBUILDING. As described in pages 146-152. Fig. 73.midship section of vessel illustrated in fig- 72. … TYPES OF VESSELS—SECTION II. 145 by means of widely-spaced bulb plate beams well kneed to the Aveb frames,and each supported by two hold pillars formed of double channel barsfitted back to back, which are bracketed at the top to the beams, and atthe bottom to the tank top-plating. The sides of the…
