Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 29

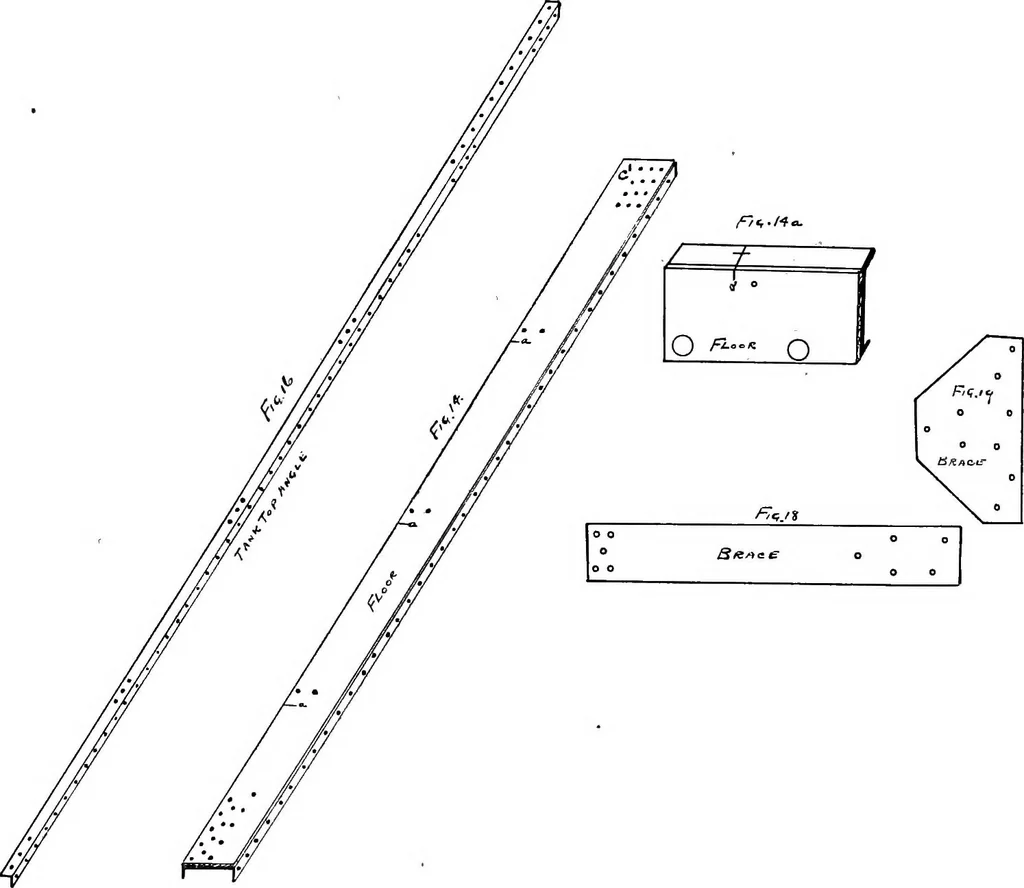

angle on the deep floor or belt frame is punched more-alikeon both flanges for the riveting to the floor plate. It will be noticed that the molds show only the bracket holes onthe four-inch flange, this tank top angle being fitted on the main frameclear of the belt frames. 18 LAKE SHIP YARD METHODS… … shows the piece for the flange rivet holes to the stringer plate. Thisplate is flanged top and bottom. Fig. 18 shows mold for channel brace between tank top and maindeck stringer in side tank and Fig. 19 shows bracket plate for samewhich are same throughout tank side, the two molds being…
Naval architecture · Ships, Iron and steel
