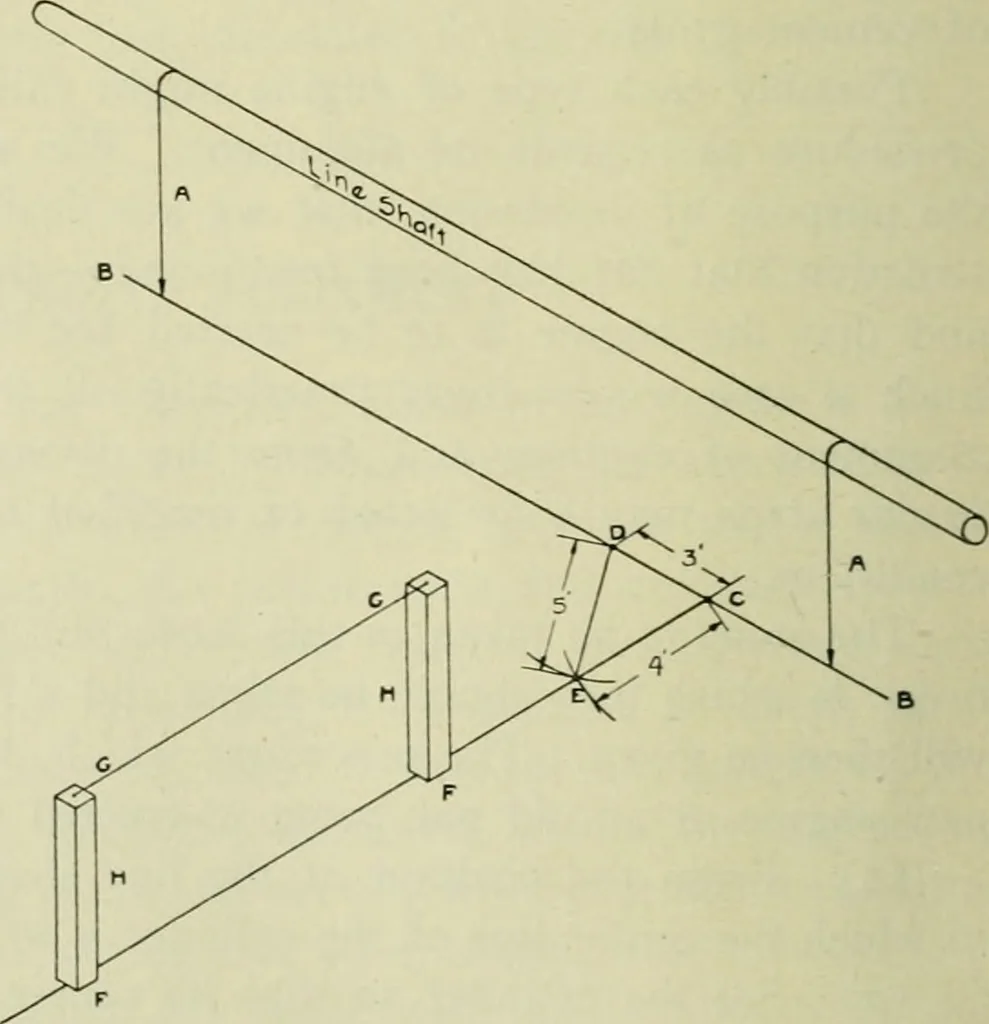

-head shde willbe made parallel. To secure this reference line the line shafting must be placed inalignment from hangerto hanger. The nextstep is to drop a plumbline from two points ofthe line shaft to thefloor, as shown in Fig. iat AA, and thus get theline BB which willnecessarily be parallel… … I92I.] THE LOCOMOTIVE. 201 \ v\\\\\\\\\\\\\\\^ of four feet and another with center at D and radius of five feet.The intersection of these two arcs will give the point E and the linethrough CE will be perpendicular to the line BB because the sum ofthe squares of the two short sides of a right…
