Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 72

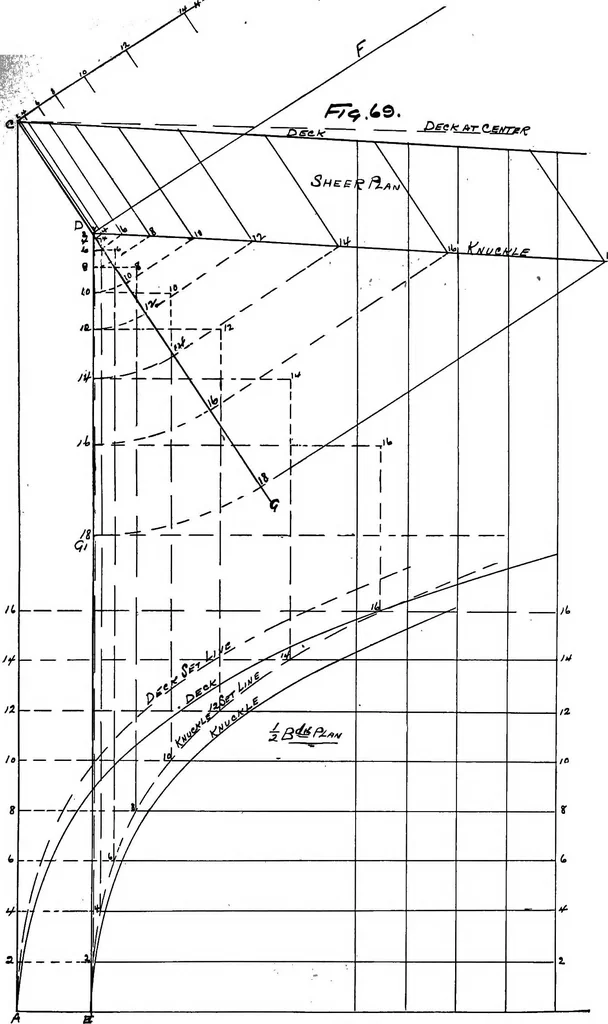

t^t / f7tp.&g. V i(, /ji- … ^7<; .po 62 LAKE SHIP YARD METHODS OF buttock lines on same and the measurements from DG to 2, 4, 6, 8,10, 12, 14 and 16 are transferred to the half breadth plan, Fig. 70,measuring on the same numbered buttock lines from the perpendicularline EGD for the knuckle set line. On the sheer plan. Fig.…
Naval architecture · Ships, Iron and steel
