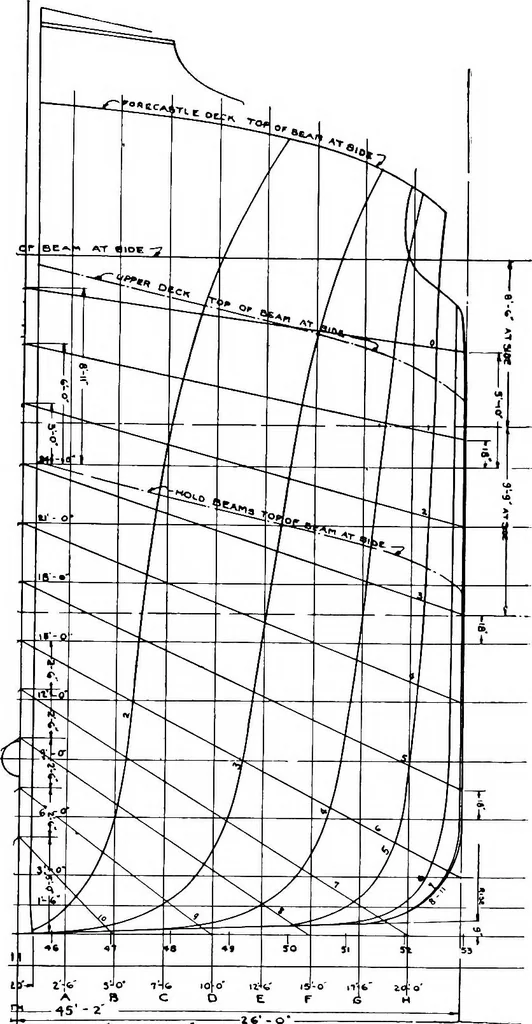

Note:—Siding for FirFigure 46.—Standard Wooden Steamship … Wood20,fory. p. 16.Moulded Lines—Body Plan. S6 CODRSE IN WOODEN BOAT AND SHIP BUILDING Figure 50 shows the section through the enginefoundation, looking forward. One-third of theengine holding-down bolts are put through to thebottom of the foundation keelsons. The remain-ing two-thirds of the…
