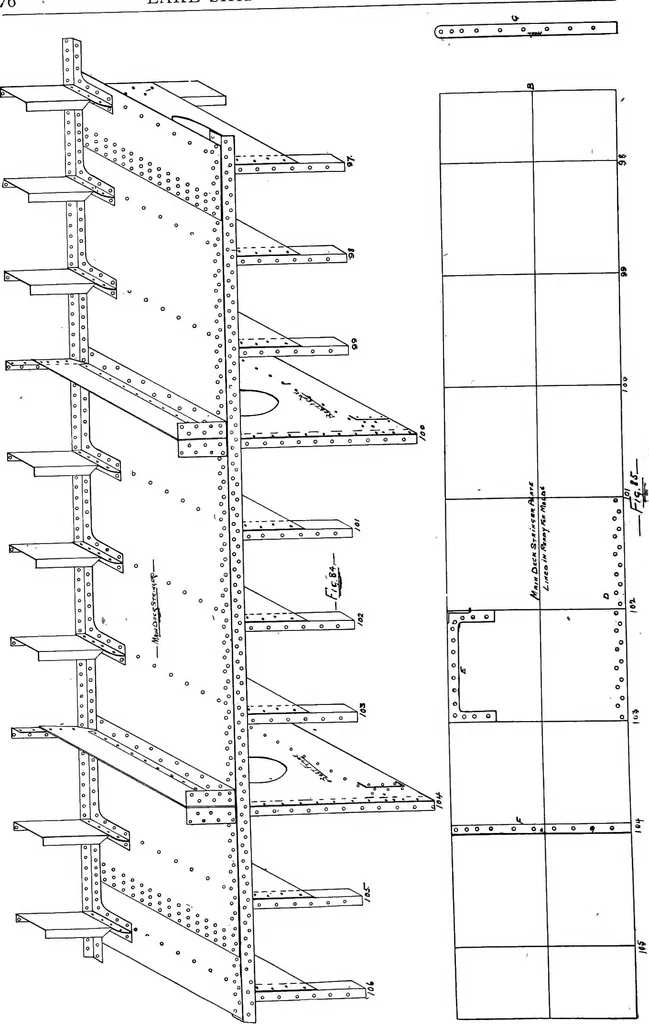

76 LAKE SHIP YARD METHODS OF … 3 STEEL SHIP CONSTRUCTION The only change of the frame holes on the keel plate is at thebulkheads as shown by N, Fig. E. The riveting for the bottom barsIs arranged by applying the seam mold G on the watertight side ofthe center keelson, that is the outer row of holes is applied to therivet hole…
