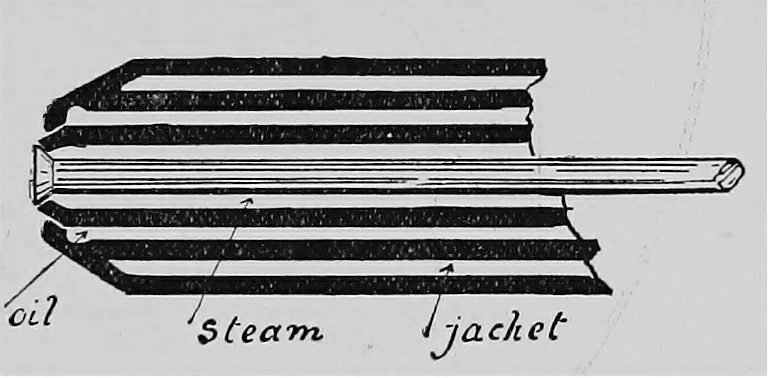

aces. Each settling tank should hold 12 hours*■consumption of fuel, and while one tank is being used from,the other is firstpumped full, andthen allowed tosettle, by which■any water whichmay have beenpumped from theballast tanks alongwith the oil, settlesto the bottom, due to its slightly greater… … Fig. 27. The nozzle of one form of burner, patented by Rusden andEeles, is shown in figure 27. It will be seen that the burner con-sists of a central spindle which terminates as a conical valve. Twaconcentric tubes are fitted over the spindle, the annular ■ spapebetween the spindle and the inner…
