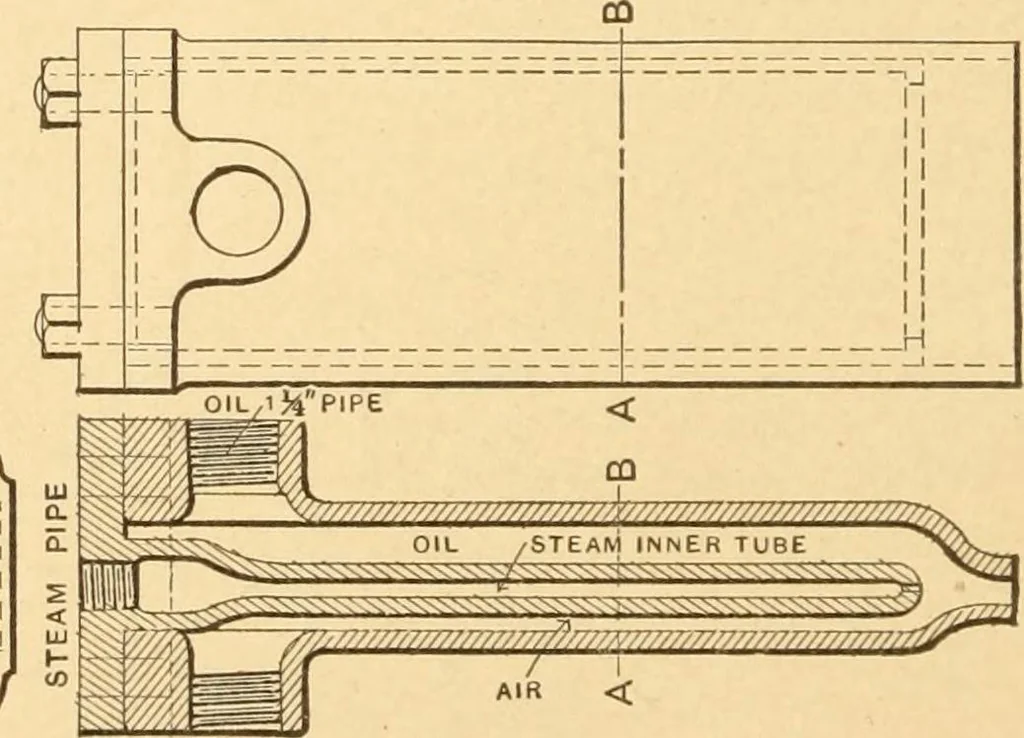

107. FUEL OIL BURNER. Plan and sections of the crudeoil burners used on the locomotives of the Southern Pacific Railroad. ^ o < ;; ; , 11 QJi__.LLO_ … The steam, oil, and air chambers are very wide and spread a broadflame. Nos. 108, 109, no, III, show the burner in detail. GENERATION OF POWER, STEAM. 63 112. LIQUID FUEL BURNER. Urquhart Locomotive type. The air nozzles are fixed, steamnozzle is movable by a screw andworm gear and regulates the…
