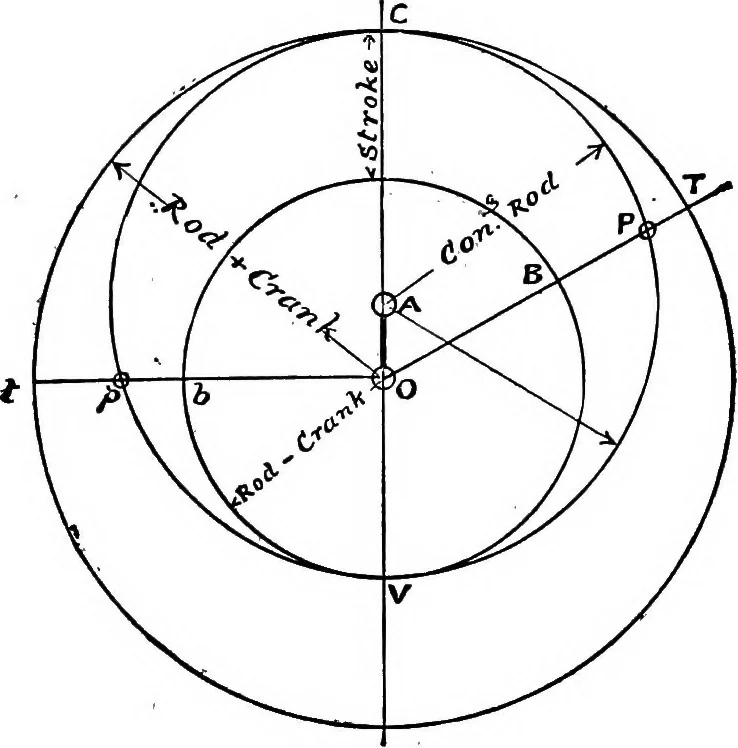

and ^J showsthe maximum disturb-ance due to the obli-•quity of the connect-ing rod, for at 90, if it were not for obliquity, the piston would be exactly at half-stroke, whereas the diagram shows that the distance pt from thetop of the stroke is considerably greater than the distance pb fromthe… … Fig.. 110. Given.—Stroke of piston 2 ft. 9 in.; length of connecting rod6 ft.; maximum opening of top port i in.; cut-off 9.1 ^ on bailt, 304 A SLIDE VALVE PROBLEM. Strokes; compression to commence at -^ on the up-stroke and at8i ID on the down-stroke; lead at top -j^ in. To find.—I, travel of…
