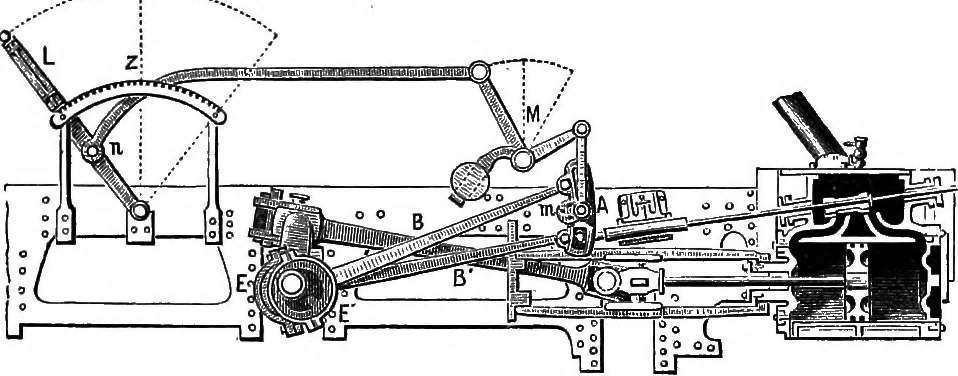

dle, L, and the link,n, and its connections, including the counterweighted bell- 206 THE MODERN STEAM-ENGINE. crank, M, this link could be raised or depressed, thusbringing the pin on the link-block, to which the valve-stem was connected, into action with either eccentric. Or,the link being set in… … Fio. 5S.—The Stephenson Valve-Gear, 1833. catch on L could be dropped, enabled the driver to placethe link where he chose. In intermediate positions, be-tween mid-gear and full-gear, the motion of the valve issuch as to produce expansion of the steam, and some gainin economy of working, although…
