A source book of problems for geometry, based upon industrial design and architectural ornament (1912)
Sykes, Mabel, 1868-, Slaught, H. E. (Herbert Ellsworth), 1861-1937, Lennes, N. J. (Nels Johann), 1874- · Boston, Allyn and Bacon · leaf 206

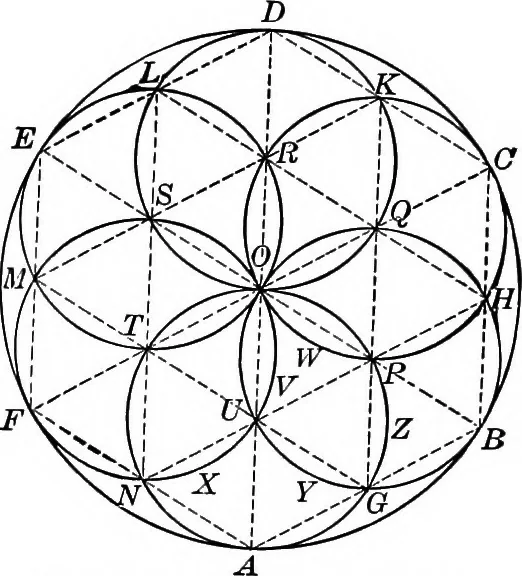

Fig. 173. Fig. 1730. OTHER FOILED FIGUBES 193 EXERCISES 210. 1. Make a complete drawing for Fig. 173. Show that itdepends directly upon Fig. 171. Why is the inner circle possible? 2. If the radius of the larger circle is r, find the radius of theinner circle. Suggestion. — Use results obtained in §… … 211. The dotted UnesinFig. 174show a regular hexagon ABCDEFinscribed in a circle. G, H, K, L, M,and N are the middle points of thesides. These are joined as indicated. Fig. 174. — From a Pompeian Mosaic.Zahn (I), Vol. II, PI. 56. EXERCISES 1. Prove that (a) GK, HL, and DC are concurrent; (6) Q is…
Geometry · Decoration and ornament
