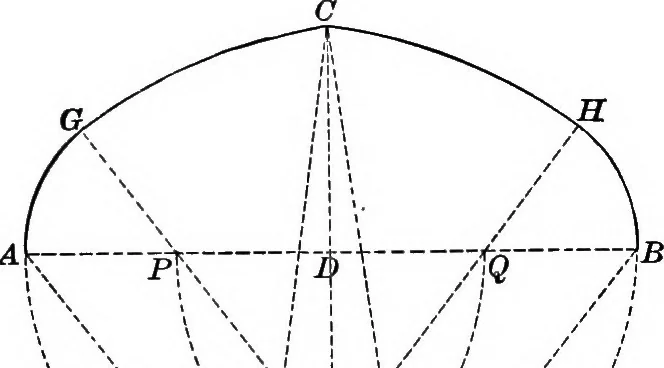

326 TRUSSES AND ARCHES 349. Becker, page 80, gives also the following specialconstruction for a Tudor Arch. … ^ \ \ (\i/ / / /\ \ \ t ,/ / / H /i\ > / ---■Ji--—J—5ik--0x 0 Fig. 293. In Fig. 293 AB is of given length. AP = PD = DQ = QB. AO0B is asemicircle constructed on AB as diameter. P and Q are the centers and PQthe radius for PO and QO- With P as center and AP as radius draw arcAG; with O as center…
