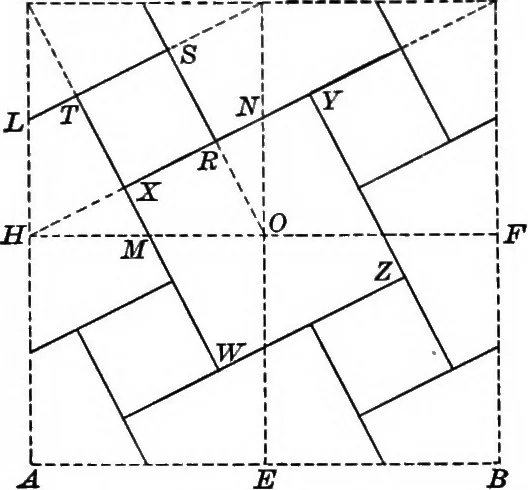

— c)^ = 32, and i^ + c^ = 61,where h=A Fand c = BY. 11. If .4 B = a, find J[ F and 5 F so that the area oiXYZW shall be a 12. In the right triangle DWC, DC is the hypothenuse andABCD is the square on the hypothenuse. Draw the figure on paste-board, cut it into pieces as indicated, and show that… … Fig. 49. — Tiled Flooring. EXERCISES 60. 1. Draw a diagram showing the construction for the tiled floordesign in Fig. 49. Suggestion. —In square HOGD, in Fig. 49, points K,L,M, and iVarethe middle points of the sides. The construction in adjacent squares issimilar and similarly placed. 2. Prove…
