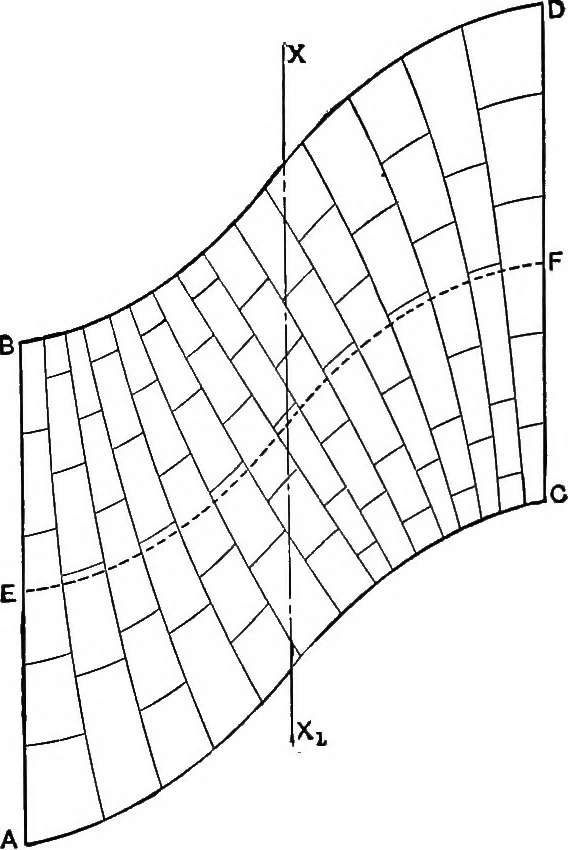

re used in its calculation. The soffitof the arch is cylindrical, as in the helicoidal method. In this method the soffit coursing-joints are perpendicular tothe plane of the arch face wherever they come in contact withit. The heading-joints on the soffit are elliptical curves parallelto the arch… … Pig. 47. The widths of the courses are fixed on the curve EF midwaybetween the curves of the developed faces of the arch. Thedeveloped heading-joints are drawn parallel to the curve AC.The coursing-joints are at right angles to the heading-joints. THE OBLIQUE OR SKEIV ARCH. loi The coursing-beds in…
