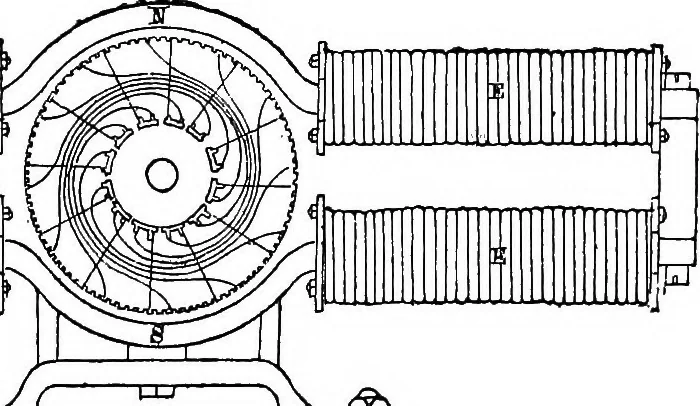

r 1 H<t !.-■.« r:r--t ^ «c T^ longitudinal axis of the cylinder, and the whole surface ofthe cylinder is covered with wire, laid on in six sections. Fig. 16. rif< ( :.il il..: T ...i: 1 1. ^ … ■ -^-^ ^ ■■■ --^ /7^/ j-^/\^ ^VWsi}^ Surrounding the wire cylinder for ahout two-thirds of itssurface are curved iron bars, the space between these 22 ELECTRIC TEANSMISSION OF POWER. curved bars and the wire cylinder being as small as isconsistent with the free rotation of the cylinder. Thecurved…
