The elements of applied mathematics including kinetics, statics, and hydrostatics (1894)
Jessop, C. M. (Charles Minshall), 1861-1939 · London, New York, G. Bell and Sons; [etc.] · leaf 212

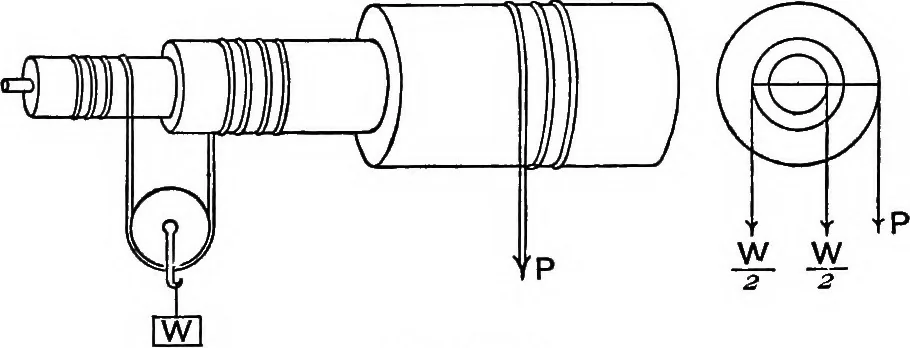

The condition of equilibrium is got from the principle of work asfollows: Let the screw descend through a step, then if P acts at a distance ffrom the axis of the screw Fxstep=Px27r/,or Wxpx27r=Px27rt, hence Wp=Pi. 192. Differential Macbines. The DifferentiaZ Wheel and Axle. … W. W. 2 2 Fig. 123. This consists of three unequal cylinders having a common axis.Bound the largest is coiled the rope by means of which the force isapplied, round the other two the portions of the rope which supportthe weight. We see from the figure that the ropes round the largest and…
Mechanics
