Ames, William L. (William Lewis), 1855-, Wischmeyer, Carl · New York, McGraw-Hill book company, inc.; [etc., etc.] · leaf 103

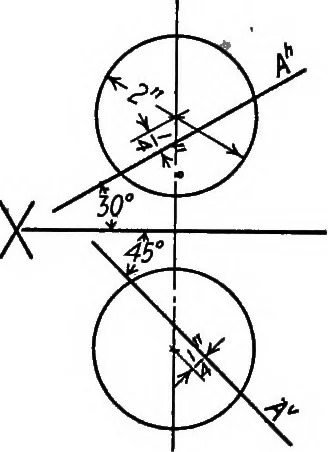

ntersected by a cylinder of 2 in.diameter. The axis of the cylihder is K in. from the center of -the < ^ -1>0 A ^ \f^ Fig. 172. 92 DESCRIPTIVE GEOMETRY sphere. Show H and V projections of the line of intersection whenthe axis of the cyUnder is parallel to H, inclined at 30° with V and in…
Geometry, Descriptive
