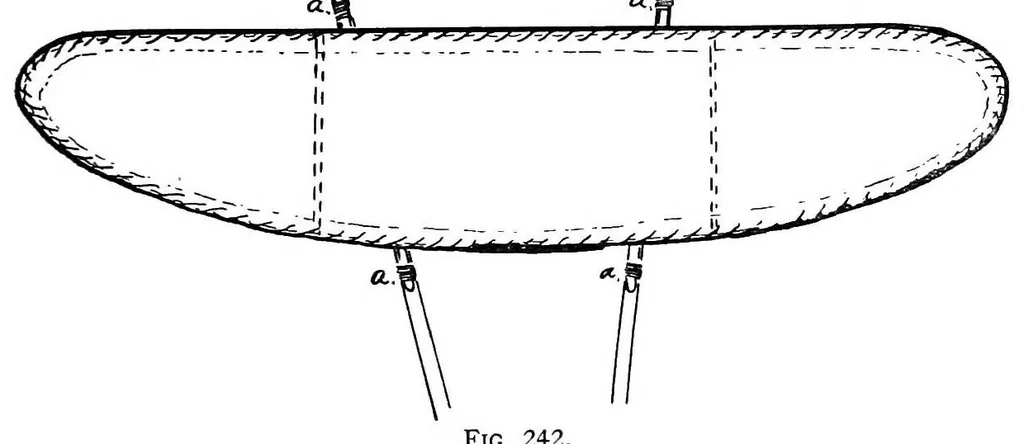

ok. In this model, the propellers are pieces of veneer steamed and pressed into the spiral shape. The propeller shaft then is bent around the center of the propeller, has two little washers between this and the bearing, after which comes the covered hook, see Fig. 237. A piece of tin I" wide and… … Fig. 242. upper portion may be slipped over the back cross-piece, Fig. 238. The fore plane is made of very thin spruce, shaped like Fig. 239, and is bent up almost like a butterfly's wings. Fig. 240. The wood is less than ■^" thick. A double hook as anchors for the double motors, is bent and…
