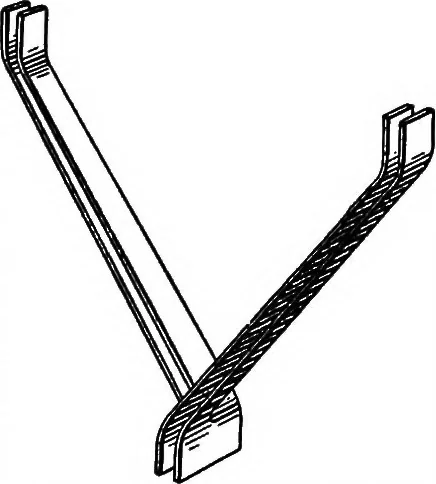

Fig. 2.—Methods of Securing V End-connections to theFace Conductors act as connectors. The connector takes itsname from its shape, which is more or lesslike the letter V. The connectors can best 596 Ventilated Commutator—Ventilation of Machinery be explained by reference to the figs. Aflat strip of… … Fig. 3.—Han View of Conductor Bars and the V End-connections joining them those shown in fig. 2. Fig. 3 shows diargrammatically four consecutive conductor-bars connected by V end-connectors. Thereason for the special shape is to allow theadjacent connec-tors to nest intoone another atthe points of…
