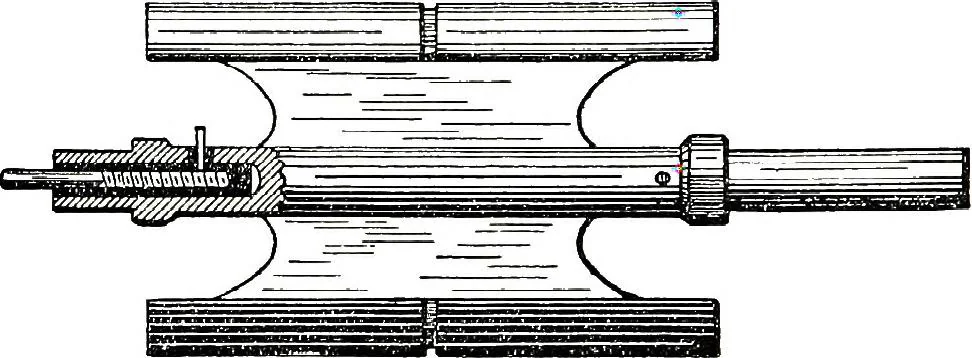

dered brass rods, B B. After this theyare bored by a special tool to the required internal diameter toreceive the armature. The core of the latter is of cast iron and isshown in Fig. 82, being accurately turned to fit freely between thepole-pieces. The bearing plates are of cast brass with a… … FIG. 82.—ARMATURE CORE OF TYPICAL GENERATOR. cast brass, the large gear being mounted on a shaft journaled in thesame bearing plates as the armature itself. The magnets are bent cold from | x J magnet steel, and aresecured in place by clamping plates, C C, and screws, 5 5, the latterpassing between…
