Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 47

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 47

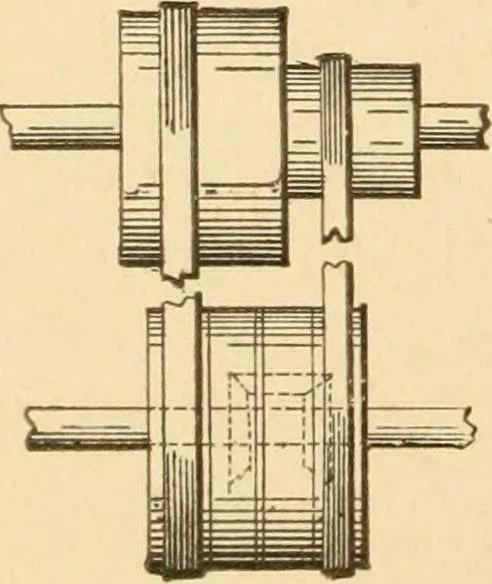

97. PULLEYS, COMBINED WITH A DIF-FERENTIAL GEAR for two speeds, and stop-beltshown on loose pulley. Middle pulley on lowershaft is fast to shaft, and has a bevel gear fast to itshub. Pulley on the right is loose on shaft and car-ries, transversely, another bevel gear. A third bevelgear runs loose*… … 98. TRANSMISSION OF TWO SPEEDSfrom a driving shaft, one a variable speed. Thesame arrangement as No. 97, with the addition ofa driving pulley of different size, and a drivenpulley attached to the friction gear on the lowershaft. The right-hand belt shifts to the nextpulley and may be straight or…
