Cyclopedia of architecture, carpentry, and building : a general reference work (1912)
American Technical Society · Chicago : American Technical Society · leaf 452

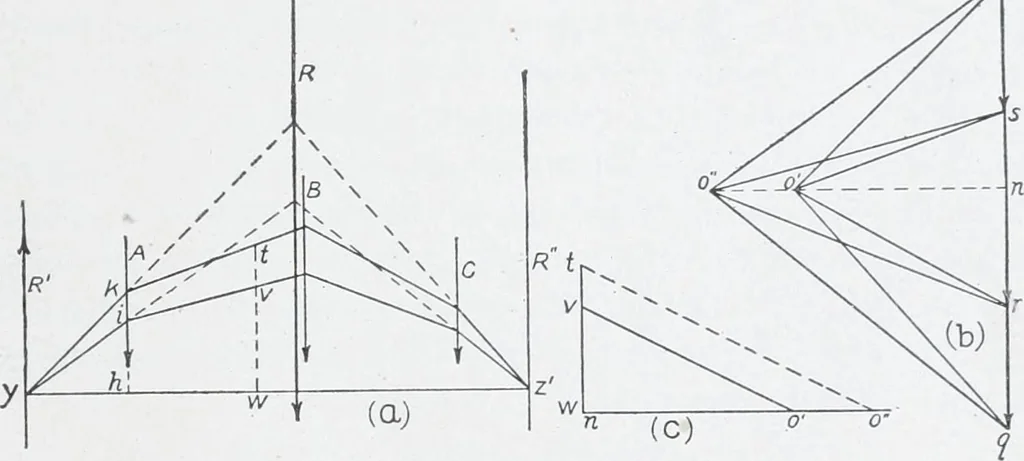

ot result in theexpected way, it either proves that a blunder has been made, or itmay mean that the general method is correct, but that the drawing ismore or less inaccurate. 400. Equilibrium Polygon with Horizontal Closing Lines. InFig. 216, have been drawn the same forces A, B, and C, having… … Fig. 216. Equilibrium Polygoii with Horizontal Closing Line. load line in the same position as in Fig. 215. Thus far the lines area repetition of those already drawn in Fig. 215, the remainder of thefigure being omitted for simplicity. Since the point n in Fig. 215 isthe end of the line from the…
Architecture · Building
Internet Archive · Kelly Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
