Martin, Louis Adolphe, 1880- · New York, J.Wiley & Sons, Inc.: [etc. etc.] · leaf 107

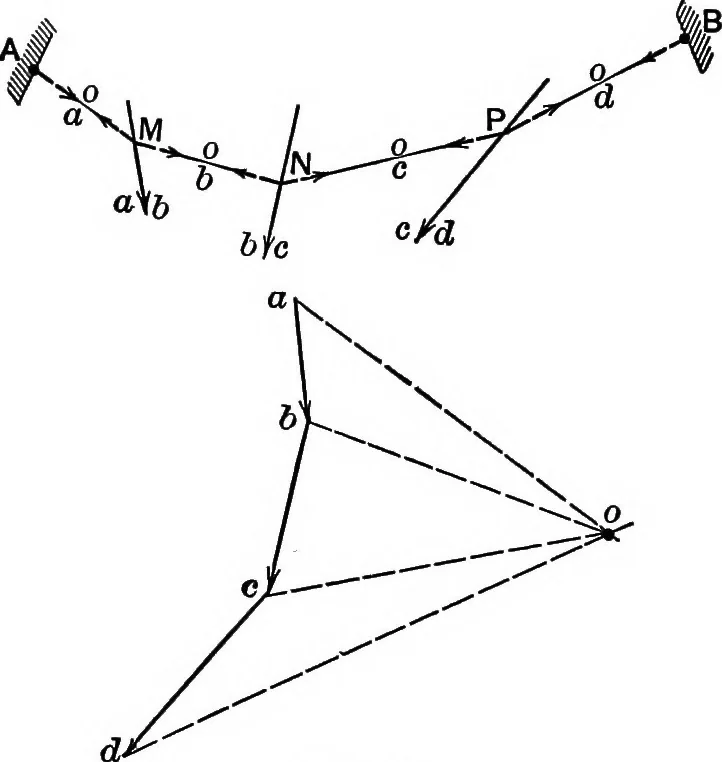

Fig. 68 Exercise 120. In Fig. 68 assume a load of 2000 poundsabout to be discharged and find graphically the stresses in theshear legs and backstay supporting the end of the boom. CHAPTER V EQUILIBRIUM OF PERFECTLY FLEXIBLEROPES AND CABLES Section XIV THE FUmCULAR POLYGON The position assumed by a… … Fig. 69 forces are ab, be, and cd; 0 is any pole, and oa, oh, oc, andod are the rays parallel to which are drawn the corre-sponding segments of the rope sustaining the given loads. 90 EQUILIBRIUM OF ROPES AND CABLES 9I Any point on oa, such as A, and any point on od, suchas B, may be assvimed as…
Mechanics
