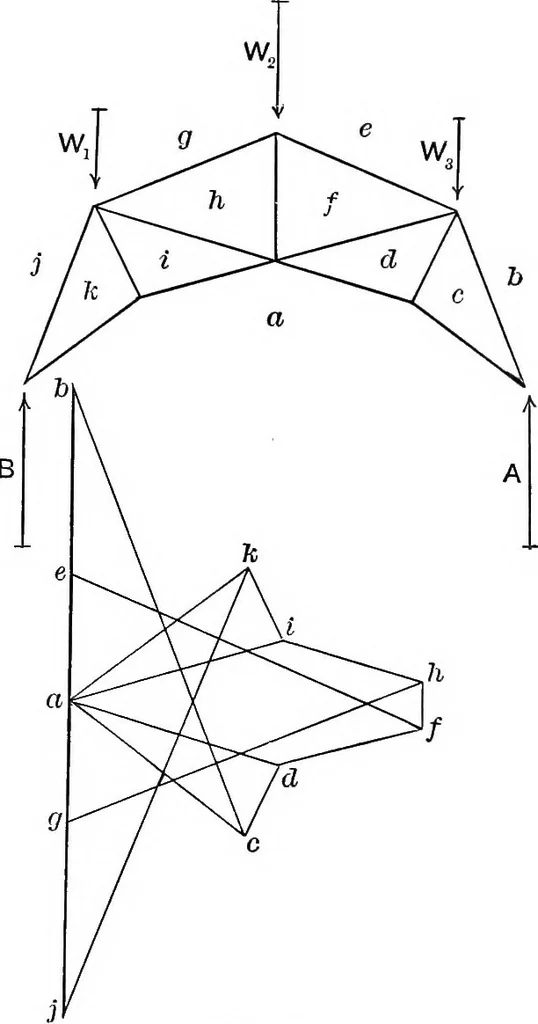

s acting along them)can thus be designated by thetwo letters of the two portionsof the plane separated by theforce or stress. For instance,the reaction A is denoted ab,and the stresses in the two mem-bers concurring at A are beand ca. The figure just de-scribed may be called t\\t framediagram; and… … Fig. 51. * The student is advised to draw the stress diagram himself step by step asindicated in the text. I06 STATICS. [177- Next, beginning at the vertex A the stresses in the two membersintersecting at A are found by resolving the reaction A along the direc-tions of these members; and this is…
