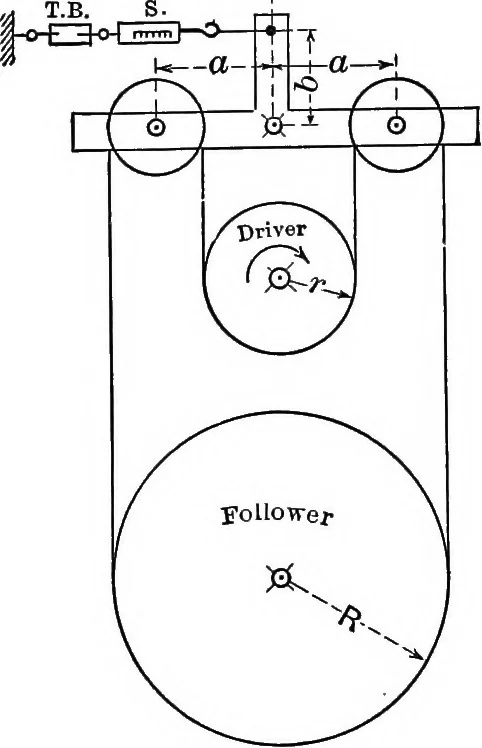

a belt transmits theenergy. The crosses (X) indi-cate fixed centers. The turn-buckle, T.B., must be adjustedso that the T-shaped arm re-mains in the position shown inthe sketch. Note that the ten-sion in the belt on one side ofthe driving pulley is greaterthan the tension on the otherside. Assuming… … Fig. 7 (b) the follower. WORK AND ENERGY In the Briggs dynamometer the belt transmitting theenergy to be measured passes over two equal pulleys,Fig. 8, and over two idle pulleys attached to a frame, A,
