Mechanical laboratory methods; the testing of instruments and machines in the mechanical engineering laboratory and in practice (1922)

Smallwood, Julian Chase · New York, D. Van Nostrand company · leaf 58

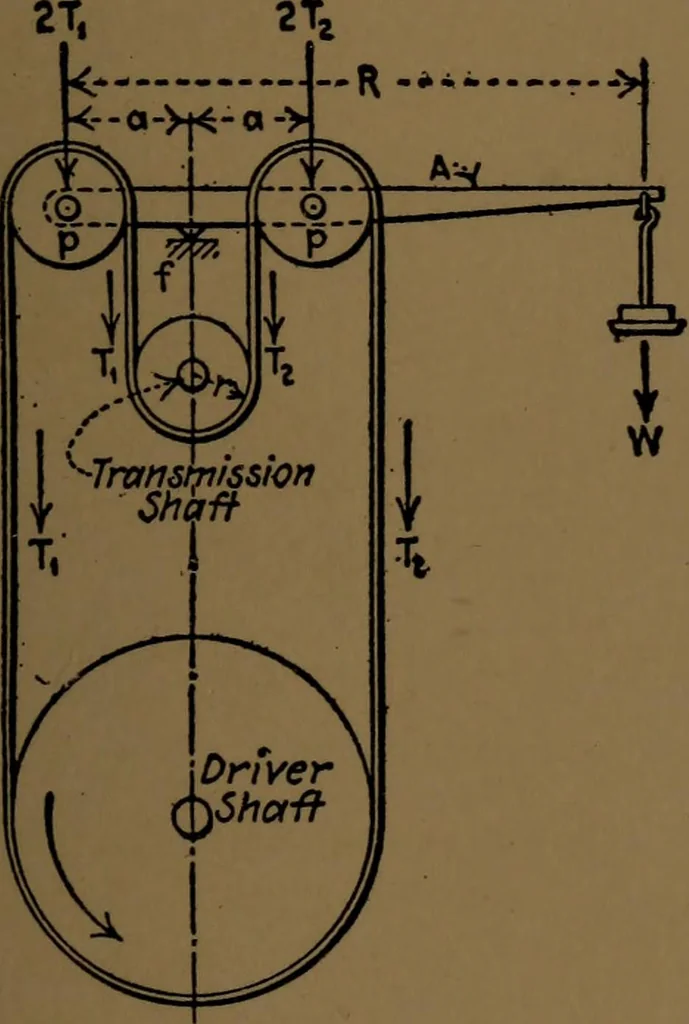

An illustration from Mechanical laboratory methods; the testing of instruments and machines in the mechanical engineering laboratory and in practice, 1922, leaf 58 — nts one. The torque of the trans- DYNAMOMETERS 41 mission shaft is equal to the effectmTbelt pull, Ti-T2j multipliedby the radius at which it acts, r. Disregarding the friction atthe bearings of the pulleys, p and p, the reactions at thesebearings will be 2T\ and 2T2, respectively, as will be seen…
